timeline_placeholder

Description​

Shows the background grid in the empty timeline

timeline_placeholder: boolean

Example​

gantt.config.timeline_placeholder = false;
...
gantt.init("gantt_here");

Details​

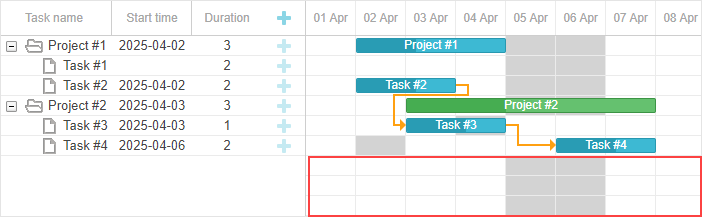

The background grid will appear in the timeline if there are no tasks loaded into the Gantt:

background grid

or if the rows with tasks don't fill the whole timeline:

background grid

To highlight columns and cells in the background grid, use the timeline_cell_class template:

gantt.templates.timeline_cell_class = function (task, date) (
    if (!gantt.isWorkTime(( date: date, task: task ))) (
        return "weekend";
    )
);

For background rows, a temporary task object will be added to the template. The object can be identified by its id:

if(task.id === "timeline_placeholder_task")(
    ...
)

Change log​

  • added in v8.0
