bar_height_padding

Description​

Adjusts the padding around task bars in the timeline when bar_height is set to "full"

bar_height_padding: number

Example​

gantt.config.bar_height_padding = 5;
gantt.init("gantt_here");

Default value: 9

Details​

The bar_height_padding config defines the vertical padding for task bars in the timeline when gantt.config.bar_height is set to "full". The height of a task bar is calculated as gantt.config.row_height - gantt.config.bar_height_padding.

  • Setting this config to 0 will make the task bars occupy the full height of the row.
  • Increasing the value adds more space above and below the bars.

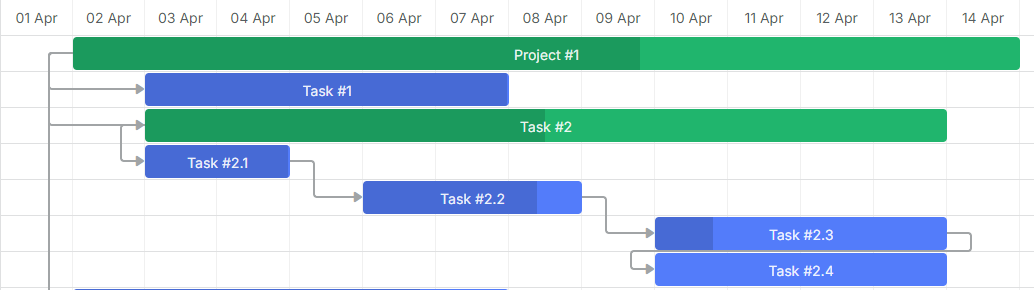

The example below shows a smaller padding value, which leaves less space around the task bars:

gantt.config.bar_height_padding = 3;

bar_height_padding_small

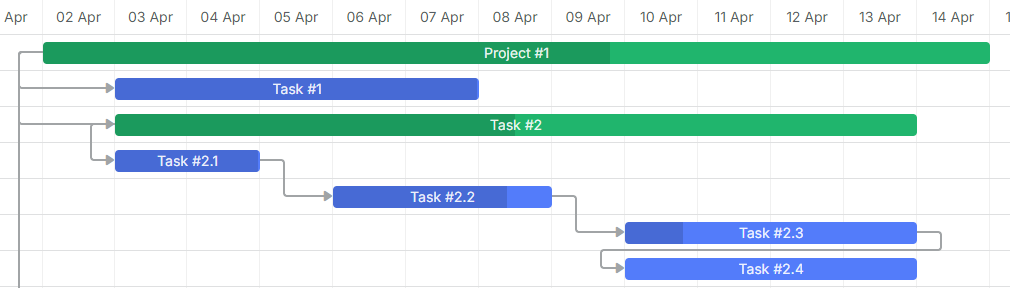

In this example, a larger padding value leaves more empty space above and below the task bars:

gantt.config.bar_height_padding = 14;

bar_height_padding_large

Change log​

  • added in v9.0
