Typeselect 컨트롤

이 기능은 PRO Edition에서만 사용할 수 있습니다.

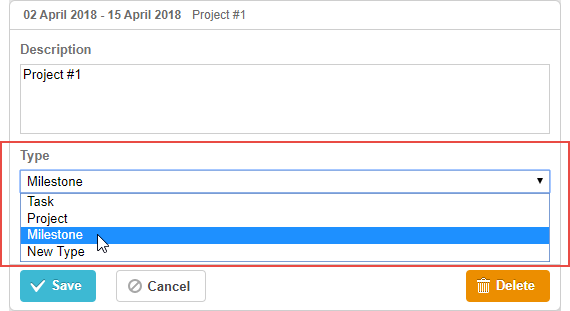

이 컨트롤은 작업 유형 변경을 위해 설계된 셀렉트 박스입니다.
옵션은 types 객체에서 가져오며, 기본 onchange 핸들러를 사용합니다. 그 외에는 Select Control에서 설명된 컨트롤과 동일하게 동작합니다.

gantt.config.lightbox.sections = [
    {name:"description", height:38, map_to:"text", type:"textarea", focus:true},
    {name: "type", type: "typeselect", map_to: "type"},                                 {name: "time", height: 72, type: "duration", map_to: "auto"}
];

Related sample:  Projects and milestones

초기화

typeselect 컨트롤을 lightbox에 포함하려면, 다음과 같이 lightbox 설정에 섹션을 추가하세요:

gantt.config.lightbox.sections = [
    {name:"description", height:38, map_to:"text", type:"textarea",focus:true},
    {name: "type", type: "typeselect", map_to: "type"},                                 {name: "time", height: 72, type: "duration", map_to: "auto"}
];

Related sample:  Projects and milestones

  • 각 작업 유형마다 개별 lightbox를 가질 수 있습니다. 새로운 작업 유형을 생성하고, 해당 유형을 위한 맞춤 lightbox 레이아웃을 정의할 수 있습니다.
  • 사용자가 이 컨트롤을 이용해 작업 유형을 변경하면, lightbox 구조가 선택된 유형에 맞게 업데이트됩니다.
  • 컨트롤은 types 객체에서 옵션을 가져오며, 기본 onchange 핸들러를 사용합니다.
  • name="type"인 섹션에는 기본적으로 "Type"이라는 레이블이 제공됩니다. 이 레이블을 사용자 정의하려면, 다음 코드를 사용하세요:
gantt.locale.labels.section_type = "섹션에 대한 새로운 레이블";

속성

typeselect 컨트롤에서 일반적으로 사용하는 주요 속성은 다음과 같습니다. (전체 목록은 여기에서 확인하세요):

  • name - (string) 섹션의 이름
  • height - (number) 섹션의 높이
  • map_to - (string) 섹션이 매핑되는 데이터 속성
  • type - (string) 섹션 컨트롤의 유형
  • focus - (boolean) true로 설정하면 lightbox가 열릴 때 해당 섹션에 포커스가 이동합니다
  • filter - (function) 작업 유형을 필터링하는 함수로, 유형 이름을 인자로 받습니다
