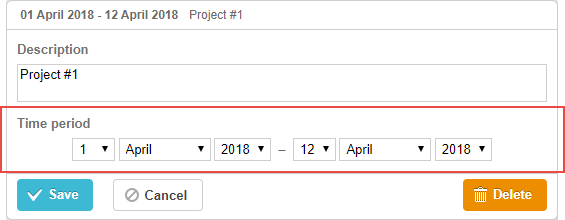

Time Control

이 컨트롤은 작업의 시작일과 종료일을 지정하여 작업의 기간을 설정할 수 있는 두 개의 선택기를 제공합니다.

gantt.config.lightbox.sections=[
    {name:"description", height:70, map_to:"text", type:"textarea", focus:true},
    {name:"time",        height:72, map_to:"auto", type:"time"} ];

Related sample:  Time control

초기화

time 컨트롤을 라이트박스에 포함하려면 다음과 같이 하세요:

1) 라이트박스 설정에 섹션을 추가합니다:

gantt.config.lightbox.sections=[
    {name:"description", height:70, map_to:"text", type:"textarea",focus:true},
    {name:"period",      height:72, map_to:"auto", type:"time"}, ];

2) 해당 섹션의 레이블을 지정합니다:

gantt.locale.labels.section_period = "Time period";

속성

'time' 컨트롤에서 자주 사용되는 주요 속성은 다음과 같습니다 (전체 목록은 여기에서 확인할 수 있습니다):

  • name - (string) 섹션의 이름
  • height - (number) 섹션의 높이
  • map_to - (string,object) "auto" 또는 섹션과 연결된 데이터 속성을 지정하는 객체
  • type - (string) section control의 타입
  • focus - (boolean) true로 설정하면 라이트박스가 열릴 때 해당 섹션에 포커스가 이동함
  • readonly - (boolean) true로 설정하면 섹션이 읽기 전용이 됨
  • year_range - (array,number) 연도 선택기의 범위를 지정. 두 가지 방법으로 정의 가능:
    • year_range: [2005, 2025] - 2005년부터 2025년까지
    • year_range: 10 - (현재 연도 - 10)부터 (현재 연도 + 10)까지
  • single_date - (boolean) true로 설정하면 start Date 선택기만 표시됨. 편집된 작업은 시작일만 있고 기간은 0이 되며, milestones에 유용함
  • time_format - (string) 날짜-시간 선택기의 순서를 제어
  • autofix_end - (boolean) 시작일이 종료일을 초과할 때 종료일을 자동으로 조정할지 결정. 기본값은 true임. 비활성화하면 날짜 유효성 검사가 가능하지만, 활성화 상태에서 유효성 검사가 없으면 start_dateend_date보다 늦을 경우 작업 기간이 0이 될 수 있음.

날짜-시간 선택기 구성

"duration" 또는 "time" 섹션의 선택기를 사용자 정의하려면 time_format 속성을 사용하세요 (날짜 형식 지정 참고):

Adding the time selector to the 'Time period' section

gantt.config.lightbox.sections = [
    {name:"description", height:38, map_to:"text", type:"textarea", focus:true},
    {name:"time",type:"time", map_to:"auto", time_format:["%d","%m","%Y","%H:%i"]}];

time_format 배열에 허용되는 멤버는 다음과 같습니다:

  • "%d" - 일(day) 선택기
  • "%m" - 월(month) 선택기
  • "%Y" - 연(year) 선택기
  • "%H:%i" - 시간 선택기 (time_picker 템플릿에 따라 포맷됨)

이 배열 내의 멤버는 순서를 변경하거나 생략할 수 있지만, 포맷 자체를 변경할 수는 없습니다.
예를 들어:

// 시간이 먼저
time_format:["%H:%i", "%m", "%d", "%Y"]
// 월이 먼저
time_format:["%m","%d", "%Y", "%H:%i"]
// 연 선택기 없이
time_format:["%H:%i", "%m", "%d"]
// 잘못된 예시
time_format:["%H:%i", "%M", "%d", "%Y"] // "%m" 대신 "%M" 사용

커스텀 시작/종료 날짜-시간 속성에 매핑

기본 매핑

기본적으로 time 및 duration 컨트롤은 map_to를 "auto" (map_to:"auto")로 설정하여 필수 'start_date'와 'end_date' 속성에 매핑됩니다.

커스텀 매핑

컨트롤을 'start_date'와 'end_date' 대신 커스텀 날짜 속성에 연결하려면 map_to에 객체를 사용하세요:

gantt.config.lightbox.sections = [
    {name: "description", height: 72, type: "textarea", map_to:"text", focus: true},
    {name: "time",        height: 72, type: "duration", map_to:"auto"},
    {name: "deadline",    height: 72, type: "time",      map_to:{start_date:"planned_start",end_date:"planned_end"}} ];

Related sample:  Displaying deadlines

map_to의 객체 형태는 다음을 지원합니다:

  1. start_date - 입력값에서 시작일을 저장하는 데이터 속성
  2. end_date - (옵션) 입력값에서 종료일을 저장하는 데이터 속성
  3. duration - (옵션) 입력값에서 기간을 저장하는 데이터 속성

속성이 생략되면 해당 컨트롤은 필수 날짜 속성을 사용합니다.

섹션 표시 전환

type:"time_optional"button: true를 라이트박스 섹션 설정에 지정하여 time 섹션의 표시 여부를 제어할 수 있습니다:

gantt.config.lightbox.sections = [
  {name: "description", height: 70, map_to: "text", type: "textarea", focus: true},
  {name: "time", map_to: "auto", button: true, type: "time_optional"} ];

또한 토글 버튼 상태의 레이블을 정의하세요:

gantt.locale.labels.time_enable_button = 'Schedule';
gantt.locale.labels.time_disable_button = 'Unschedule';

섹션 옆에 토글 버튼이 표시되어, 사용자가 해당 섹션을 표시하거나 숨길 수 있습니다. 표시 상태에서는 type:"time"과 동일하게 동작합니다.

버튼이 비활성화되면 섹션이 숨겨지지만 즉시 변경 사항은 없습니다. "Save"를 클릭하면 time 컨트롤과 map_to로 연결된 작업 속성이 null로 설정됩니다.

gantt.getTask(1);

// 반환값
{
    id: '1', text: 'Task #1', unscheduled: true,
    duration: 0, parent: '10',
    end_date: null, start_date: null,
    ...
}

이 기능은 작업을 미예약(unscheduled) 상태로 표시할 때 유용합니다. 관련 예시는 다음을 참고하세요:

Related sample:  Unscheduled tasks
