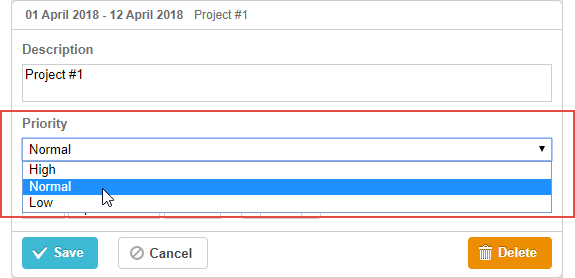

Select Control

드롭다운 리스트 박스입니다.

gantt.config.lightbox.sections = [
    {name:"description", height:38, map_to:"text", type:"textarea", focus:true},
    {name:"priority", height:22, map_to:"priority", type:"select", options: [         {key:1, label: "High"},                                                       {key:2, label: "Normal"},                                                     {key:3, label: "Low"}                                                      ]},                                                                          {name:"time", height:72, type:"duration", map_to:"auto"}
];

gantt.locale.labels.section_priority = "Priority";

Related sample:  Select control

초기화

select 컨트롤을 lightbox에 포함하려면 다음과 같이 진행합니다:

1) lightbox 설정에 섹션을 추가합니다:

var opts = [
    {key:1, label: "High"},
    {key:2, label: "Normal"},
    {key:3, label: "Low"}
];

gantt.config.lightbox.sections = [
    {name:"description", height:38, map_to:"text", type:"textarea",focus:true},
    {name:"priority", height:22, map_to:"priority",type:"select",options:opts},                                                                           {name:"time", height:72, type:"duration", map_to:"auto"}
];

2) 섹션에 라벨을 지정합니다:

gantt.locale.labels.section_priority = "Priority";

Related sample:  Select control

속성

아래는 select 컨트롤에서 자주 설정되는 주요 속성입니다 (전체 목록은 여기에서 확인하세요):

  • name - (string) 섹션의 이름
  • height - (number) 섹션의 높이
  • map_to - (string) 섹션에 매핑되는 데이터 속성명
  • type - (string) section control의 타입
  • focus - (boolean) true일 때 lightbox가 열릴 때 해당 섹션에 포커스가 이동
  • options - (array) select 컨트롤 옵션을 정의하는 객체 배열 (select, checkbox, radio 컨트롤에서 사용). 각 객체는 하나의 옵션을 나타내며 다음을 포함:
    • key - (string) 옵션 ID, 태스크 데이터 속성과 매칭되어 옵션을 할당
    • label - (string) 옵션 라벨
  • default_value - (any) 입력 값이 undefined일 때 적용되는 기본 값
  • onchange - (function) 컨트롤의 'onChange' 이벤트 핸들러 함수

컨트롤에 데이터 채우기

select 컨트롤의 값을 설정하려면 options 파라미터를 사용하세요:

gantt.config.lightbox.sections = [
    { name:"priority",height:22, map_to:"priority",type:"select",
      options: [
        {key:1, label: "High"},
        {key:2, label: "Normal"},
        {key:3, label: "Low"}
    ]}
];

options 배열의 각 항목은 다음 두 속성을 가져야 합니다:

  • key - 옵션 ID
  • label - 옵션 라벨

서버 데이터로 컨트롤 채우기

서버 데이터로 컨트롤을 채우려면 options 파라미터에 serverList 메서드에서 반환된 값을 할당하세요:

gantt.config.lightbox.sections = [
    {name:"description", ...},
    { name:"priority",map_to:"priority",type:"select",
        options:gantt.serverList("priority")},     {name:"category", map_to:"category", type:"select",
        options:gantt.serverList("category")},     {name:"time", ...}
];
gantt.init("gantt_here");
gantt.load("/data");

/data 엔드포인트의 응답 예시는 아래와 같습니다:

{
  "tasks":[
    {"id":1,"text":"Project #2","start_date":"01-04-2020","duration":18,"parent":0},
    {"id":2,"text":"Task #1","start_date":"02-04-2020","duration":8,"parent":1},
    {"id":3,"text":"Task #2","start_date":"11-04-2020","duration":8,"parent":1}
  ],
  "links":[
    {"id":1,"source":1,"target":2,"type":"1"},
    {"id":2,"source":2,"target":3,"type":"0"}
  ],
  "collections": {     "priority":[
        {"value":"1","label":"Low"},
        {"value":"2","label":"Medium"},
        {"value":"3","label":"High"}
    ],
    "category":[
        {"value":"1","label":"Simple"},
        {"value":"2","label":"Complex"},
        {"value":"3","label":"Unknown"}
    ]
  }
}

dhtmlxConnector를 통한 옵션 로딩

아래는 dhtmlxConnector 초기화 예시입니다:

//data.php
<?php
    include('connector-php/codebase/gantt_connector.php');

    $res = new PDO("mysql:host=localhost;dbname=gantt", "root", "");

    $list = new OptionsConnector($res);
    $list->render_table("priorities","id","id(value),name(label)");

    $gantt = new JSONGanttConnector($res);
    $gantt->set_options("priority", $list);
    $gantt->render_links("gantt_links","id","source_task(source),
                    target_task(target),type");
    $gantt->render_table("gantt_tasks","id","start_date,duration,text,progress,
                    sortorder,parent");
?>
