Available only in PRO Edition

제약 컨트롤

이 기능은 PRO Edition에만 포함되어 있습니다.

이 컨트롤은 간트 작업의 시간 제약을 지정하기 위해 설계된 특수 컨트롤입니다.

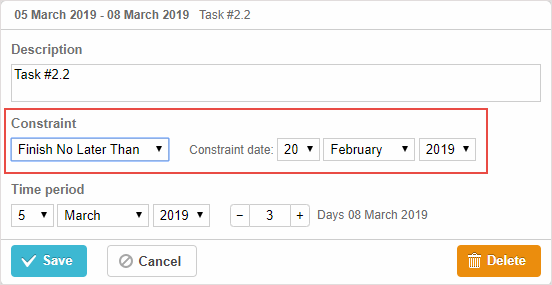

Constraint control

gantt.config.lightbox.sections = [
    { name:"description", height:38, map_to:"text", type:"textarea", focus:true},
    { name:"constraint", type:"constraint" },      { name:"time", type:"duration", map_to:"auto" }
];

Related sample:  Auto-Schedule From Project Start & Constraints

초기화

constraint 컨트롤을 라이트박스에 추가하려면 다음 단계를 따르세요:

1. 라이트박스 설정에 섹션을 추가합니다:

gantt.config.lightbox.sections = [
    { name:"description", height:38, map_to:"text", type:"textarea", focus:true},
    { name:"constraint", type:"constraint" },      { name:"time", type:"duration", map_to:"auto" }
];

2. 섹션에 대한 레이블을 정의합니다:

gantt.locale.labels.section_constraint = "Constraint";

Related sample:  Auto-Schedule From Project Start & Constraints

속성

constraint 컨트롤에 일반적으로 사용되는 주요 속성은 다음과 같습니다 (전체 목록은 여기에서 확인할 수 있습니다):

  • name - (string) 섹션 이름을 식별합니다
  • type - (string) section control의 타입을 지정합니다
