Available only in PRO Edition

리소스 컨트롤

이 기능은 PRO Edition에만 포함되어 있습니다.

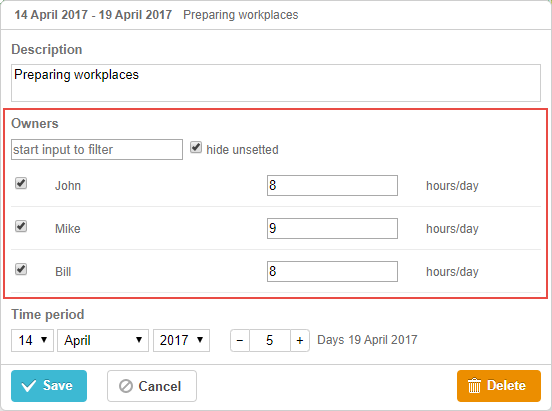

이 컨트롤은 여러 리소스와 해당 수량을 작업에 할당할 수 있도록 설계된 다목적 컨트롤입니다.

Resources control server options

gantt.config.lightbox.sections = [
 {name: "description", height: 38, map_to: "text", type: "textarea", focus: true},
 {name:"owner",height:60, type:"resources", default_value:8},    {name: "time", type: "duration", map_to: "auto"}
];

Related sample:  Assign multiple resources

또는,

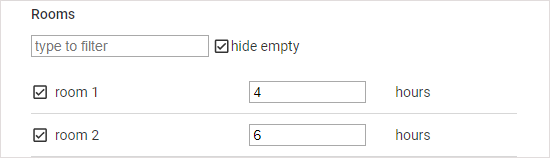

Resources control options

gantt.config.lightbox.sections = [
  { name:"description",height:38,map_to:"text",type:"textarea",focus:true },
  { name:"time",type:"duration",map_to:"auto" },
  { name:"rooms",type:"resources",map_to:"rooms", options:[        { key: 1, label: "room 1", unit: "hours" },          { key: 2, label: "room 2", unit: "hours" },         { key: 3, label: "room 3", unit: "hours" }       ]    }    ];

gantt.locale.labels.section_rooms = "Rooms";

Related sample:  Resources control

초기화

resources 컨트롤을 lightbox에 포함하려면 다음 단계를 따르세요:

1. lightbox 설정에 섹션을 추가합니다:

gantt.config.lightbox.sections = [
  { name:"description",height:38,map_to:"text",type:"textarea",focus:true },
  { name:"time",type:"duration",map_to:"auto" },
  { name:"rooms",type:"resources" }    ];

2. 섹션에 대한 레이블을 정의합니다:

gantt.locale.labels.section_resources = "Rooms";

Related sample:  Resources control

속성

resources 컨트롤에 일반적으로 설정되는 주요 속성은 다음과 같습니다 (전체 목록은 여기에서 확인할 수 있습니다):

  • name - (string) 섹션의 이름
  • map_to - (string) 섹션에 매핑되는 데이터 속성 이름
  • type - (string) 섹션에 대한 컨트롤 유형
  • options - (array) 컨트롤의 선택 옵션을 정의하는 객체 배열 (select, checkbox, radio, resources 컨트롤에서 사용). 각 객체는 다음을 포함합니다:
    • key - (string) 옵션 id, 작업 데이터 속성과 매칭됨
    • label - (string) 옵션 레이블
    • unit - (number) 리소스의 단위
  • focus - (boolean) true이면 lightbox가 열릴 때 섹션에 포커스가 감
  • default_value - (any) 컨트롤의 기본값, 리소스 값이 정의되지 않았을 때 사용. 각 옵션마다 개별 기본값 지정 가능

기본적으로 리소스 컨트롤은 resource_property에서 정의된 속성에 매핑되므로, map_to를 명시하지 않아도 됩니다.

기본적으로 리소스 컨트롤은 리소스 데이터스토어gantt.serverList("resourceOptions") 컬렉션에서 자동으로 옵션을 불러옵니다. 이 동작을 변경하려면 옵션을 수동으로 지정해야 합니다.

컨트롤에 데이터 채우기

v8.0부터 리소스 컨트롤은 리소스 데이터스토어에서 자동으로 옵션을 가져옵니다.

Gantt에서 제공하는 기본 리소스 데이터스토어를 사용할 경우 options 파라미터 없이 초기화된 resource controlgantt.serverList("resourceOptions") 컬렉션에 연결되며, 이 컬렉션은 데이터스토어에서 가져온 리소스로 채워집니다. 코드에서 옵션에 접근하려면 아래와 같이 사용합니다:

const options = gantt.serverList("resourceOptions");

옵션 배열은 데이터스토어에 리소스가 로드되기 전까지 비어 있다는 점에 유의하세요.

또한, 아래와 같이 사용자 지정 옵션 목록으로 이 컬렉션을 업데이트할 수 있습니다:

gantt.updateCollection("resourceOptions", [...]);

이 컬렉션을 업데이트한 후에 gantt에 리소스를 다시 로드하면, 변경사항이 덮어써질 수 있습니다.

lightbox에 표시될 리소스를 제어하려면 gantt.config.resources.lightbox_resources 설정을 재정의하세요:

gantt.config.resources = {
    lightbox_resources: function selectResourceControlOptions(resources){
        const lightboxOptions = [];
        resources.forEach(function(res) {
            if (!gantt.$resourcesStore.hasChild(res.id)) {
                const copy = gantt.copy(res);
                copy.key = res.id;
                copy.label = res.text;
                lightboxOptions.push(copy);
            }
        });
        return lightboxOptions;
    }
};

리소스 데이터스토어를 수동으로 생성하는 경우, 리소스 컨트롤 옵션을 직접 채워야 합니다.

일반적으로 resources 컨트롤에 값을 설정하려면 options 파라미터를 사용하세요:

gantt.config.lightbox.sections = [
    { name:"rooms",type:"resources",map_to:"rooms",
        options:[
            { key: 1, label: "room 1", unit: "hours" },
            { key: 2, label: "room 2", unit: "hours" },
            { key: 3, label: "room 3", unit: "hours" }
        ]
    }
];

options 배열의 각 항목은 다음을 포함해야 합니다:

  • key - 옵션 id
  • label - 옵션 레이블
  • unit - 리소스의 단위

서버에서 데이터로 컨트롤 채우기

서버에서 데이터를 받아 컨트롤을 채우려면 options 속성을 serverList 메서드가 반환하는 값으로 설정하세요:

gantt.config.lightbox.sections = [
 {name: "description", height: 38, map_to: "text", type: "textarea", focus: true},
 {name: "resources", type: "resources", map_to: "owner_id", default_value:8,
    options: gantt.serverList("resourceOptions")},
 {name: "time", type: "duration", map_to: "auto"}
];

gantt.init("gantt_here");
gantt.load("/data");

gantt.serverList("resourceOptions")의 내용은 updateCollection 메서드를 사용하여 옵션이 준비될 때 설정할 수 있습니다:

gantt.updateCollection("resourceOptions", [
    { key: 1, label: "room 1", unit: "hours" },
    { key: 2, label: "room 2", unit: "hours" },
    { key: 3, label: "room 3", unit: "hours" }
])

Related sample:  Assign multiple resources
