이 튜토리얼은 JS DHTMLX Gantt를 React 애플리케이션 내에서 사용하는 방법을 안내합니다. 공식 React Gantt 컴포넌트에 대해서는 React Gantt 문서를 참고하세요.
이 가이드를 따라하기 전에 React의 기본 개념과 패턴을 이해하고 있으면 도움이 됩니다. React가 처음이라면 React documentation을 먼저 참고해보세요.
DHTMLX Gantt는 React와 잘 호환됩니다. 관련 예제는 GitHub에서 확인할 수 있습니다: DHTMLX Gantt with React Demo.
새 프로젝트를 생성하기 전에 Node.js가 설치되어 있는지 확인하세요.
기본 React 프로젝트를 빠르게 생성하려면 다음 명령어를 실행하세요:
npx create-vite my-react-gantt-app --template react
이제 프로젝트 폴더로 이동합니다. 프로젝트 이름이 my-react-gantt-app이라면 다음을 실행하세요:
cd my-react-gantt-app
이후, 의존성을 설치하고 개발 서버를 시작합니다. 사용하는 패키지 매니저에 따라 아래 명령어를 사용하세요:
yarn install
yarn dev
npm install
npm run dev

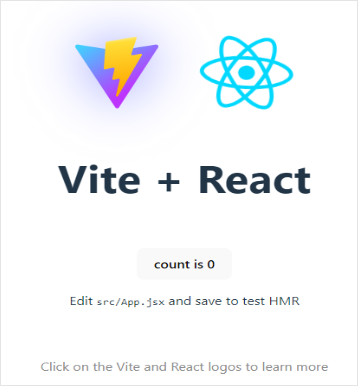

이제 React 앱이 http://localhost:5173에서 실행됩니다.
다음으로, DHTMLX Gantt 코드를 받아봅니다. 먼저, 터미널에서 Ctrl+C를 눌러 실행 중인 앱을 중지하세요. 그런 다음 Gantt 패키지를 설치합니다.
라이브러리의 PRO 버전은 npm/yarn을 통해 당사 프라이빗 저장소에서 제공됩니다. 접근 권한을 얻으려면 이 안내를 참고하세요.
Evaluation(평가판) 버전을 받았다면 아래 명령어로 설치할 수 있습니다:
npm install @dhx/trial-gantt
yarn add @dhx/trial-gantt
또는, 라이브러리 zip 패키지가 npm 모듈 구조이므로, 로컬 폴더에서 설치할 수도 있습니다.
이제 React 컴포넌트를 만들어 앱에 Gantt를 통합해보겠습니다. src/ 디렉터리에 Gantt.jsx 파일을 새로 만듭니다.
Gantt.jsx를 열고 Gantt 소스 파일을 임포트합니다. 아래를 참고하세요:
Gantt.jsx
import { Gantt} from "dhtmlx-gantt";
import "dhtmlx-gantt/codebase/dhtmlxgantt.css";
Gantt.jsx
import { Gantt} from "@dhx/trial-gantt";
import "@dhx/trial-gantt/codebase/dhtmlxgantt.css";
이 가이드에서는 trial 버전을 사용합니다.
Gantt를 페이지에 렌더링하려면 컨테이너 요소가 필요합니다. Gantt.jsx 파일은 다음과 같이 작성합니다:
Gantt.jsx
import { useEffect, useRef } from "react"; import { Gantt } from "@dhx/trial-gantt";
import "@dhx/trial-gantt/codebase/dhtmlxgantt.css";
export default function GanttView() { let container = useRef();
useEffect(() => { let gantt = Gantt.getGanttInstance(); gantt.init(container.current);
return () => { gantt.destructor(); container.current.innerHTML = ""; }; }, []);
return <div ref={container} style={ {width: "100%", height: "100%"} }></div>; }
이제 앱에 Gantt 컴포넌트를 포함시킵니다. src/app.jsx를 열고 기본 내용을 아래로 교체하세요:
src/app.jsx
import Gantt from "./Gantt";
function App() {
return <Gantt/>;
}
export default App;
Gantt 컨테이너가 전체 화면을 채우도록 하려면 src/의 index.css에서 기본 스타일을 제거하고 아래 스타일을 추가하세요:
src/index.css
html,
body,
#root {
height: 100%;
padding: 0;
margin: 0;
}
앱을 다시 시작하면 빈 Gantt 차트가 표시됩니다:
Gantt에 작업을 표시하려면 데이터셋을 제공해야 합니다. src/에 data.js 파일을 만들고 아래 내용을 추가하세요:
src/data.js
export function getData() {
const tasks = {
data: [
{
id: "10",
text: "Project #1",
start_date: "01-04-2025",
duration: 3,
order: 10,
progress: 0.4,
open: true,
},
{
id: "1",
text: "Task #1",
start_date: "01-04-2025",
duration: 1,
order: 10,
progress: 0.6,
parent: "10",
},
{
id: "2",
text: "Task #2",
start_date: "02-04-2025",
duration: 2,
order: 20,
progress: 0.6,
parent: "10",
},
],
links: [{ id: 1, source: 1, target: 2, type: "0" }],
};
return tasks;
}
이 데이터를 App.jsx에서 Gantt 컴포넌트의 props로 전달합니다:
App.jsx
import Gantt from "./Gantt";
import { getData } from "./data.js";
function App() {
return <Gantt tasks={getData()} />;
}
export default App;
그리고 Gantt 컴포넌트 내에서 gantt.parse() 메소드에 props를 전달하세요:
Gantt.jsx
import { useEffect, useRef } from "react";
import { Gantt } from "@dhx/trial-gantt";
import "@dhx/trial-gantt/codebase/dhtmlxgantt.css";
export default function GanttView(props) {
let container = useRef();
useEffect(() => {
let gantt = Gantt.getGanttInstance();
gantt.init(container.current);
gantt.parse(props.tasks);
return () => {
gantt.destructor();
container.current.innerHTML = "";
};
}, []);
return <div ref={container} style={ {width: "100%", height: "100%"} }></div>;
}
앱을 새로고침하면 작업이 표시된 Gantt 차트를 볼 수 있습니다:
Gantt에서 변경된 내용을 처리하려면 dataProcessor를 사용할 수 있습니다. dataProcessor는 백엔드와의 통신을 가능하게 해줍니다. dataProcessor는 함수 또는 라우터 객체로 정의할 수 있습니다. dhtmlxGantt는 handler에서 Promise 응답을 지원하므로, 작업을 적절히 처리할 수 있습니다.
createDataProcessor()로 DataProcessor를 생성하고 다음과 같이 변경사항을 감지할 수 있습니다:
gantt.createDataProcessor(function(entity, action, data, id) {
gantt.message(`${entity} ${action}`);
});
백엔드에서 레코드 생성 후 새로운 id를 할당하는 경우(일반적인 동작), Promise는 반드시 {id: databaseId} 또는 {tid: databaseId} 형태의 객체를 반환해야 Gantt에서 해당 레코드를 올바르게 업데이트할 수 있습니다. 자세한 내용은 server side integration을 참고하세요.
이렇게 하면 React Gantt가 준비됩니다. 전체 데모는 GitHub에서 확인할 수 있습니다: https://github.com/DHTMLX/react-gantt-demo.
Gantt 자체는 SQL injection, XSS, CSRF와 같은 보안 위협에 대한 보호 기능을 제공하지 않습니다. 애플리케이션의 보안은 백엔드를 관리하는 개발자의 책임입니다.
일반적인 취약점과 보안 강화를 위한 권장 사항은 Application Security 문서를 참고하세요.
