Checkbox Control

A two-state checkbox. The control is used for switching an option or several values on/off.

For example, it is helpful for:

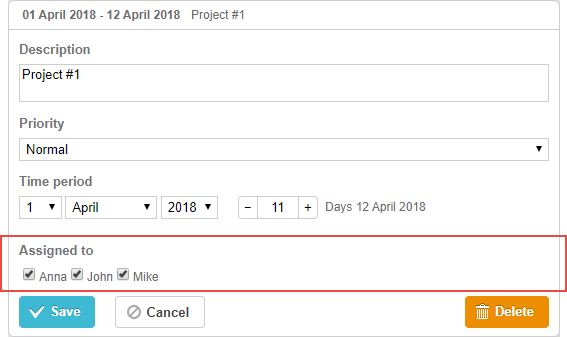

• assigning resources to tasks

Related sample: Checkbox control

• switching between the split and tree modes for split tasks

gantt.config.lightbox.project_sections = [
    { name: "description", height: 70, map_to: "text", type: "textarea", focus: true },
    { name: "split", type: "checkbox", map_to: "render", options: [
        { key: "split", label: "Split Task" }
    ] },
    { name: "time", type: "duration", readonly: true, map_to: "auto" }
];

Related sample: Split task

Initialization

To add the checkbox control to the lightbox, follow these steps:

1. Add a section to the lightbox configuration:

var opts = [
    { key: "split", label: "Split Task" }
];

gantt.config.lightbox.sections = [
    { name: "description", height: 70, map_to: "text", type: "textarea", focus: true },
    { name: "split", type: "checkbox", map_to: "render", options: opts },
    { name: "time", type: "duration", readonly: true, map_to: "auto" }
];

2. Set a label for the section:

gantt.locale.labels.section_split = "Display";

Related sample: Split task

Properties

The following properties are mostly important and commonly set for the checkbox control (see the full list here):

• name - (string) the section name
• map_to - (string) the name of a data property that will be mapped to the section
• type - (string) the type of the section control
• options - (array) an array of objects. Defines select options of the control (used for the select, checkbox and radio controls). Each object in the array specifies a single option and takes the following properties:
  • key - (string) the option id. This attribute is compared with the task data property to assign options to tasks
  • label - (string) the option label
• focus - (boolean) if set to true, the section will take focus on opening the lightbox
• default_value - (any) the default value of the section's control. Applied only if the input value is underfined

Populating control with data

Generally, to set values for the checkbox control, use the options parameter:

gantt.config.lightbox.sections = [
    { name: "split", type: "checkbox", map_to: "render", options: [
        { key: "split", label: "Split Task" }
    ] }
];

Items in the options parameter have 2 mandatory properties:

• key - the option id
• label - the option label
