Diagram configuration

DHTMLX Diagram provides a wide range of options for configuration. You can change the scale of a diagram, set the default type of shapes and lines, set margins between shapes, apply selection, and set a toolbar with icons for the shapes.

Setting the Diagram mode

There are the following Diagram modes you can choose from: "default", "org" and "mindmap". Their detailed description is given in the Diagram overview article. You can specify the necessary type via the type configuration option, as follows:

const diagram = new dhx.Diagram("diagram_container", {
type: "default" // or `type: "org"`, or `type: "mindmap"`

Setting the default shape type

It is possible to set the default type for all the shapes via the defaultShapeType attribute of the diagram configuration object:

const diagram = new dhx.Diagram("diagram_container", {
type: "default", // or type: "org", or type: "mindmap"
defaultShapeType: "rectangle"

This value will be applied, if the configuration object of the shape doesn't contain the type property.

The default types for all shapes are:

  • "rectangle" - for the diagram in the default mode
  • "card" - for the diagram in the default mode or the org chart mode
  • "topic" - for the diagram in the mindmap mode

Setting the default line type

You can set a common type for all the connector lines of the diagram via the lineType parameter of the lineConfig property of the diagram configuration object:

const diagram = new dhx.Diagram("diagram_container", {
type: "default",
lineConfig: {
lineType: "dash" // "dash" | "line"

This value is applied, if the line object doesn't contain the type property.

Setting the default configuration of a shape

There is a great possibility to escape operating with a big data set while preparing it for loading into the diagram. You can specify the default configuration for all shapes and lines of the necessary types and, therefore, reduce the amount of records in your code.

For this purpose, use the defaults property of the diagram configuration object:

The defaults object contains a number of key:value pairs where the key is the type of a shape or line and the value is the default config of the shape or line correspondingly.


The type and id attributes can not be defined in the default configuration of a shape/line

Check the full list of configuration properties of a shape and line.

Arranging shapes in the mindmap mode of Diagram

In the mindmap mode of Diagram, the arrangement of child shapes relative to the root shape is defined automatically by the main algorithm. To change the default direction of the child shapes, use the typeConfig configuration property on initialization of the diagram.


The typeConfig configuration property is not available in the Diagram Editor

The property allows you to:

Setting direction for all child shapes

To set the child shapes to the right/left of the root shape, use the direction attribute of the typeConfig property:

Setting direction for individual child shape

You can set the mandatory direction for specific child shapes via the side attribute of the typeConfig property. The attribute is an object that contains a set of key:value pairs where key is the direction of the shapes (left, right) and value is an array with the ids of the shapes.

Other child shapes that are not set in the side option will be arranged automatically according to the main algorithm.

Positioning Diagram and shapes

You can specify the position of a diagram on a page and set margins for shapes inside the margin attribute of the diagram configuration object:

Configuring autoplacement for shapes

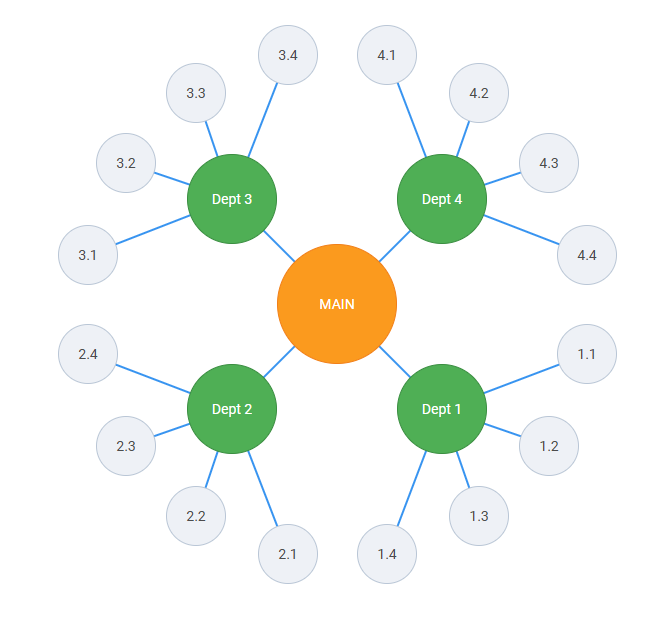

The DHTMLX Diagram library lets you configure settings for arranging connected shapes of Diagram in the hierarchical structure automatically. You can specify the autoplacement property in the configuration object of Diagram and configure the mode of connecting shapes and distance between unconnected diagrams:

const diagram = new dhx.Diagram("diagram_container", {
autoplacement: {
mode: "edges",
graphPadding: 100,
placeMode: "radial"

The property can contain three options:

  • mode - (string) optional, the mode of connecting shapes, "direct" (by default) or "edges"
  • graphPadding - (number) optional, sets the distance between unconnected diagrams, "200" by default
  • placeMode - (string) sets the mode of placement of shapes, "orthogonal" (by default) or "radial"

The autoplacement will be applied only after the autoPlace() method is applied. The autoplacement does not work if you use groups or swimlanes.

Adjusting the Diagram scale

If necessary, you can scale a diagram to fit your application. It can be done with the help of the scale option. By default, its value is set to 1. So, to zoom in on a diagram, set the option to a value larger than 1 and to zoom out - smaller than 1, correspondingly.

Setting toolbar for shapes

DHTMLX Diagram allows you to specify a toolbar with icons for Diagram shapes to simplify interaction with them. You can enable the shape toolbar via the toolbar option of the diagram configuration object:

Enabling items selection

It is possible to activate selection of items in a diagram. You need to make use of the select attribute of the diagram configuration object. Once you've enabled selection in a diagram, you can make use of the Selection object API to work with the items selection.


The predefined set of events of the selection object can help you to define the way of processing the behavior of the diagram during selecting/unselecting items
