本教程介绍了如何使用 Slim 3 框架和后端 REST API 构建基于 PHP 的 Scheduler 的基本步骤。
本教程使用的是较旧的 Slim Framework v3.x。若需最新版,请参见 Slim Framework v4.x 指南。
我们还提供了与其他平台和框架集成的教程:
在开发 PHP 应用程序时,通常会使用成熟的框架,而不是从零开始开发所有内容。
本示例将使用 Slim 3 框架,结合服务器端的 REST API,并使用 MySQL 作为数据存储。CRUD 操作通过 PDO 实现,设计上也可灵活适配其他框架。
你可以在 GitHub 上查看完整演示。按照以下分步说明构建此应用。
完整源码可在 GitHub 获取。
首先,使用 Slim 3 的 skeleton application 作为起点。
通过 Composer 创建应用:
$ composer create-project slim/slim-skeleton scheduler-slim-howto
$ cd scheduler-slim-howto/
$ composer require illuminate/database "~5.1"
接下来,把 scheduler 添加到页面。这只需两个简单步骤。
在 templates
文件夹下创建 scheduler.phtml 文件:
templates/scheduler.phtml
<!doctype html>
<html>
<head>
<title> Getting started with dhtmlxScheduler</title>
<meta charset="utf-8">
<script src="https://cdn.dhtmlx.com/scheduler/edge/dhtmlxscheduler.js"></script>
<link href="https://cdn.dhtmlx.com/scheduler/edge/dhtmlxscheduler.css"
rel="stylesheet" type="text/css" charset="utf-8">
<style> html, body{
margin:0px;
padding:0px;
height:100%;
overflow:hidden;
}
</style>
</head>
<body>
<div id="scheduler_here" class="dhx_cal_container"
style='width:100%; height:100%;'>
<div class="dhx_cal_navline">
<div class="dhx_cal_prev_button"> </div>
<div class="dhx_cal_next_button"> </div>
<div class="dhx_cal_today_button"></div>
<div class="dhx_cal_date"></div>
<div class="dhx_cal_tab" name="day_tab"></div>
<div class="dhx_cal_tab" name="week_tab"></div>
<div class="dhx_cal_tab" name="month_tab"></div>
</div>
<div class="dhx_cal_header"></div>
<div class="dhx_cal_data"></div>
</div>
<script> scheduler.config.xml_date="%Y-%m-%d %H:%i";
scheduler.init('scheduler_here', new Date(2019,0,20), "week");
scheduler.load("/events", "json");
var dp = scheduler.createDataProcessor("/events");
dp.setTransactionMode("REST"); // use to transfer data with REST
dp.init(scheduler);
</script>
</body>
</html>
视图页面准备好后,在 src/routes.php 中配置路由,以便通过浏览器访问:
src/routes.php
$app->get('/', function (Request $request, Response $response, array $args) {
return $this->renderer->render($response, 'scheduler.phtml', $args);
});

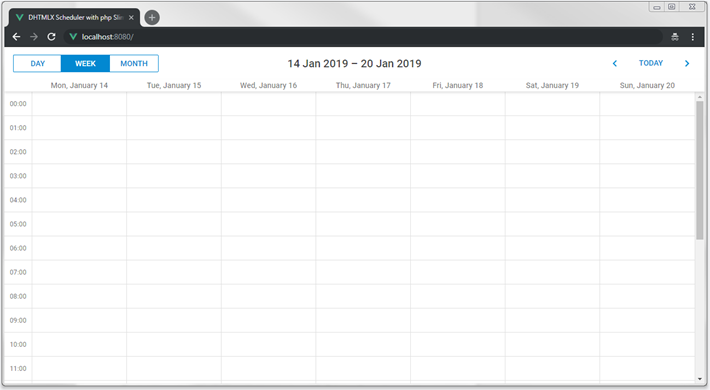

现在可以启动应用并看到 scheduler 已显示:
此时 scheduler 还没有数据。下一步是创建数据库并连接到应用。
你可以使用常用的 MySQL 客户端或控制台来创建数据库。以下 SQL 用于创建日历事件所需的数据库和数据表:
CREATE DATABASE IF NOT EXISTS `scheduler_howto_php`;
USE `scheduler_howto_php`;
DROP TABLE IF EXISTS `events`;
CREATE TABLE `events` (
`id` int(11) AUTO_INCREMENT,
`start_date` datetime NOT NULL,
`end_date` datetime NOT NULL,
`text` varchar(255) DEFAULT NULL,
PRIMARY KEY (`id`)
) DEFAULT CHARSET=utf8;
如需通过 MySQL 控制台导入,可将上述内容保存为 dump.sql 文件并运行:
$ mysql -uuser -ppass scheduler < mysql_dump.sql
接下来,打开 src/settings.php,添加数据库配置数组,并使用你的数据库信息进行更新:
src/settings.php
'pdo' => [
'engine' => 'mysql',
'host' => 'localhost',
'database' => 'scheduler_howto_php',
'username' => 'user',
'password' => 'pass',
'charset' => 'utf8',
'collation' => 'utf8_unicode_ci',
'options' => [
PDO::ATTR_ERRMODE => PDO::ERRMODE_EXCEPTION,
PDO::ATTR_DEFAULT_FETCH_MODE => PDO::FETCH_ASSOC,
PDO::ATTR_EMULATE_PREPARES => true,
],
]
然后,在 src/dependencies.php 中,将 PDO 实例添加到应用容器中:
src/dependencies.php
// Inject a new instance of PDO into the container
$container['database'] = function($container) {
$config = $container->get('settings')['pdo'];
$dsn = "{$config['engine']}:host={$config['host']};dbname={$config['database']};
charset={$config['charset']}";
$username = $config['username'];
$password = $config['password'];
return new PDO($dsn, $username, $password, $config['options']);
};
scheduler 已设置为通过 "/events" 获取事件数据。现在需要为该请求添加处理器以提供真实数据。
由于后面会有多个处理器,建议使用 路由分组 进行组织。
打开 src/routes.php,为 "/events" 添加分组及 GET 操作:
src/routes.php
$app->group('/events', function () {
$this->get('', function (Request $request, Response $response, array $args) {
$db = $this->database;
$queryText = 'SELECT * FROM `events`';
$query = $db->prepare($queryText);
$query->execute();
$result = $query->fetchAll();
return $response->withJson($result);
});
});
当你向数据库添加一些事件后,它们会在 scheduler 上显示出来。
此时 scheduler 会一次性加载所有事件,适合小型数据集。但若用于计划或预订等场景且旧记录不删除,事件数量会迅速增长,每次页面加载时都会传输大量数据。
动态加载通过只请求当前日期范围内可见的事件来优化性能。每当用户切换视图时,scheduler 只会加载相关数据。
要启用此功能,在客户端设置 setLoadMode 选项为 "day"、"week" 或 "month":
scheduler.config.xml_date="%Y-%m-%d %H:%i";
scheduler.init("scheduler_here", new Date(2019, 0, 20), "week");
scheduler.setLoadMode("day");
scheduler.load("/events", "json");
在服务器端,按如下方式处理日期过滤:
src/routes.php
$app->group('/events', function () {
$this->get('', function (Request $request, Response $response, array $args) {
$db = $this->database;
$queryText = 'SELECT * FROM `events`';
$params = $request->getQueryParams(); $queryParams = [];
if (isset($params['from']) && isset($params['to'])) { $queryText .= " WHERE `end_date`>=? AND `start_date` < ?;"; $queryParams = [$params['from'], $params['to']]; }
$query = $db->prepare($queryText);
$query->execute($queryParams); $result = $query->fetchAll();
return $response->withJson($result);
});
});
此时 scheduler 已能从后端读取数据,接下来需要把更改保存到数据库。
客户端以 REST 模式工作,对事件操作分别发送 POST、PUT 和 DELETE 请求。 参考 scheduler 使用的请求格式和路由。
定义控制器处理这些操作,配置路由,并在客户端启用保存功能。
在 src/routes.php 中添加 POST 处理器以插入新事件:
src/routes.php
$this->post('', function (Request $request, Response $response, array $args) {
$db = $this->database;
$body = $request->getParsedBody();
$queryText = 'INSERT INTO `events` SET
`start_date`=?,
`end_date`=?,
`text`=?';
$queryParams = [
$body['start_date'],
$body['end_date'],
$body['text']
];
$query = $db->prepare($queryText);
$query->execute($queryParams);
$result = [
'tid' => $db->lastInsertId(),
'action' => 'inserted'
];
return $response->withJson($result);
});
插入新事件时,服务器会在响应的 tid
属性中返回其 ID。JSON 响应还可以包含其他可在客户端访问的属性。
同理,添加 PUT 处理器用于更新事件:
$this->put('/{id}', function (Request $request, Response $response, array $args) {
$db = $this->database;
$id = $request->getAttribute('route')->getArgument('id');
$body = $request->getParsedBody();
$queryText = 'UPDATE `events` SET
`start_date`=?,
`end_date`=?,
`text`=?
WHERE `id`=?';
$queryParams = [
$body['start_date'],
$body['end_date'],
$body['text'],
$id
];
$query = $db->prepare($queryText);
$query->execute($queryParams);
$result = [
'action' => 'updated'
];
return $response->withJson($result);
});
再添加 DELETE 处理器用于删除事件:
$this->delete('/{id}', function (Request $request, Response $response, array $args) {
$db = $this->database;
$id = $request->getAttribute('route')->getArgument('id');
$queryText = 'DELETE FROM `events` WHERE `id`=? ;';
$query = $db->prepare($queryText);
$query->execute([$id]);
$result = [
'action' => 'deleted'
];
return $response->withJson($result);
});
接下来,让我们配置客户端以与刚刚创建的 API 协同工作:
templates/basic.phtml
scheduler.config.xml_date="%Y-%m-%d %H:%i";
scheduler.init("scheduler_here", new Date(2019, 0, 20), "week");
scheduler.setLoadMode("day");
// 从后端加载数据
scheduler.load("/events", "json");
// 将更新发送到后端
var dp = scheduler.createDataProcessor("/events"); dp.init(scheduler);
// 设置数据交换模式
dp.setTransactionMode("REST");

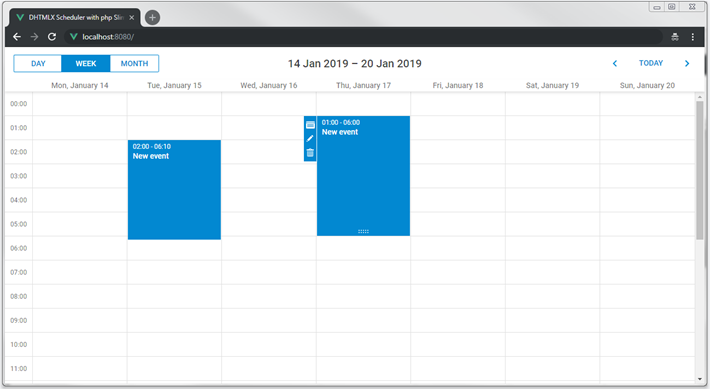

重启应用后,你就可以在调度器中创建、删除和修改事件。所有更改在刷新页面后都会被保留。
如需启用循环(如“每天重复事件”)功能,需要在调度器页面添加相应的扩展:
...
<body>
...
<script> scheduler.plugins({
recurring: true });
scheduler.init('scheduler_here', new Date(2019,0,20), "week");
...
</script>
</body>
"events" 表需要增加额外的字段来存储循环事件的数据。以下是用于创建循环事件表的 SQL 语句:
CREATE DATABASE IF NOT EXISTS `scheduler_howto_php`;
USE `scheduler_howto_php`;
DROP TABLE IF EXISTS `events`;
CREATE TABLE `events` (
`id` int(11) AUTO_INCREMENT,
`start_date` datetime NOT NULL,
`end_date` datetime NOT NULL,
`text` varchar(255) DEFAULT NULL,
`event_pid` int(11) DEFAULT 0,
`event_length` bigint(20) unsigned DEFAULT 0,
`rec_type` varchar(25) DEFAULT '',
PRIMARY KEY (`id`)
) DEFAULT CHARSET=utf8;
或者,也可以使用以下命令在之前的 events 表基础上添加这些字段:
ALTER TABLE `events` ADD COLUMN `event_pid` int(11) DEFAULT '0';
ALTER TABLE `events` ADD COLUMN `event_length` bigint(20) unsigned DEFAULT '0';
ALTER TABLE `events` ADD COLUMN `rec_type` varchar(25) DEFAULT '';
后端处理逻辑也需要相应更新,详细说明请参考本节。
首先,更新 POST
路由的 SQL 语句以包含新增字段。
同时,需要处理循环事件的特殊情况:删除循环系列中的某一特定事件时,需要创建一条新记录。客户端会调用 insert 操作:
src/routes.php
$this->post('', function (Request $request, Response $response, array $args) {
$db = $this->database;
$body = $request->getParsedBody();
$queryText = 'INSERT INTO `recurring_events` SET
`start_date`=?,
`end_date`=?,
`text`=?,
`event_pid`=?, `event_length`=?, `rec_type`=?'; $queryParams = [
$body['start_date'],
$body['end_date'],
$body['text'],
// 循环事件字段
$body['event_pid'] ? $body['event_pid'] : 0, $body['event_length'] ? $body['event_length'] : 0, $body['rec_type'] ];
// 从循环系列中删除单个事件
$resultAction = 'inserted'; if ($body['rec_type'] === "none") { $resultAction = 'deleted';//!
}
/*
循环事件数据处理结束
*/
$query = $db->prepare($queryText);
$query->execute($queryParams);
$result = [
'tid' => $db->lastInsertId(),
'action' => $resultAction
];
return $response->withJson($result);
});
PUT
处理逻辑也需要类似更新。此外,修改循环系列时,必须删除该系列所有已修改的事件:
src/routes.php
$this->put('/{id}', function (Request $request, Response $response, array $args) {
$db = $this->database;
$id = $request->getAttribute('route')->getArgument('id');
$body = $request->getParsedBody();
$queryText = 'UPDATE `recurring_events` SET
`start_date`=?,
`end_date`=?,
`text`=?,
`event_pid`=?, `event_length`=?, `rec_type`=? WHERE `id`=?';
$queryParams = [
$body['start_date'],
$body['end_date'],
$body['text'],
$body['event_pid'] ? $body['event_pid'] : 0, $body['event_length'] ? $body['event_length'] : 0, $body['rec_type'],//!
$id
];
if ($body['rec_type'] && $body['rec_type'] != 'none') { // 更新循环系列时应删除所有已修改的事件
// https://docs.dhtmlx.com/scheduler/server_integration.html#recurringevents
$subQueryText = 'DELETE FROM `recurring_events` WHERE `event_pid`=? ;';
$subQuery = $db->prepare($subQueryText);
$subQuery->execute([$id]);
}
$query = $db->prepare($queryText);
$query->execute($queryParams);
$result = [
'action' => 'updated'
];
return $response->withJson($result);
});
最后,DELETE
操作需要处理两种特殊情况:
event_pid
不为空,说明用户正在删除循环系列中的某个已修改事件。此时无需从数据库中移除该记录,而是将其 rec_type
设置为 'none',这样调度器会跳过该事件。src/routes.php
$this->delete('/{id}', function (Request $request, Response $response, array $args) {
$db = $this->database;
$id = $request->getAttribute('route')->getArgument('id');
// 循环事件相关逻辑
// https://docs.dhtmlx.com/scheduler/server_integration.html#recurringevents
$subQueryText = 'SELECT * FROM `recurring_events` WHERE id=? LIMIT 1;'; $subQuery = $db->prepare($subQueryText); $subQuery->execute([$id]); $event = $subQuery->fetch(PDO::FETCH_ASSOC);
if ($event['event_pid']) { // 删除循环系列中的某个已修改事件
// 实际操作是将 rec_type 更新为 'none'
$subQueryText='UPDATE `recurring_events` SET `rec_type`=\'none\' WHERE `id`=?;';
$subQuery = $db->prepare($subQueryText);
$subQuery->execute([$id]);
$result = [
'action' => 'deleted'
];
return $response->withJson($result);
}
if ($event['rec_type'] && $event['rec_type'] != 'none') {//!
// 删除循环系列时,移除所有已修改的事件
$subQueryText = 'DELETE FROM `recurring_events` WHERE `event_pid`=? ;';
$subQuery = $db->prepare($subQueryText);
$subQuery->execute([$id]);
}
/*
循环事件数据处理结束
*/
$queryText = 'DELETE FROM `recurring_events` WHERE `id`=? ;';
$query = $db->prepare($queryText);
$query->execute([$id]);
$result = [
'action' => 'deleted'
];
return $response->withJson($result);
});
循环事件在数据库中以单条记录存储,但在客户端由 Scheduler 自动展开为各个实例。
如果需要在服务器端处理单独的事件日期,可以考虑使用 dhtmlxScheduler 的 PHP 辅助库来解析循环事件。
你可以在 GitHub 上获取现成的库。
dhtmlxScheduler 是一款客户端工具,为了保持灵活性,并未内置安全机制。因此,单靠客户端无法保证安全性。
这意味着后端开发者需要负责应用的安全性。主要注意事项包括:
如果后端操作失败,客户端期望收到如此处所述的 "error" 状态响应。
一种处理方式是添加 middleware,将处理逻辑包裹在 try-catch
中,若出错则返回错误信息给客户端。
可以在 src/routes.php 中定义此中间件:
src/routes.php
$schedulerApiMiddleware = function ($request, $response, $next) {
try {
$response = $next($request, $response);
} catch (Exception $e) {
// 重置响应并发送错误详情
$response = new \Slim\Http\Response();
return $response->withJson([
'action' => 'error',
'message' => $e->getMessage()
]);
}
return $response;
};
然后将其附加到路由组:
src/routes.php
$app->group('/events', function () {
...
})->add($schedulerApiMiddleware);
在客户端,可以通过 dataProcessor 的 onAfterUpdate 事件捕捉这些错误:
dp.init(scheduler);
dp.attachEvent("onAfterUpdate", function(id, action, tid, response){
if(action == "error"){
// 在此处理错误
}
});
如果你已按步骤操作但 Scheduler 页面未显示事件,请参考 后端集成问题排查指南 文章获取定位问题的指导。
至此,你已经拥有一个完整可用的 Scheduler。完整代码可在 GitHub 获取,方便你克隆、下载或用于自己的项目。
你还可以进一步阅读 Scheduler 更多功能的指南 或关于 与其他后端框架集成的教程。
返回顶部
