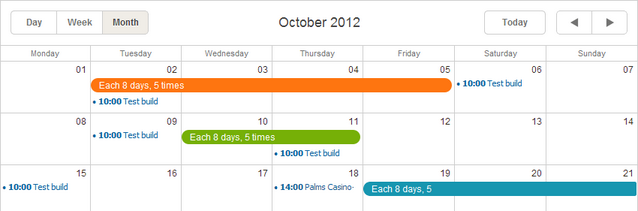

月视图

月视图显示单个月份的日历。

初始化

月视图在基础调度器标记中默认包含,因此无需额外操作即可添加。

// 标准初始化;月视图会自动包含
scheduler.init('scheduler_here', new Date(2019,0,10), "month");
...
scheduler.load("/data/events");

Related sample:  Basic initialization

移除月视图标签

如果需要移除月视图标签,只需从scheduler 的标记中删除对应的 div:

// 删除此 div 即可移除月视图标签
<div class="dhx_cal_tab" name="month_tab" style="right:204px;"></div>

限制单元格中的事件数量

默认情况下,scheduler 会自动调整单元格高度以容纳所有事件。

从 4.0 版本开始,可以控制每个单元格中显示的事件数量,同时也限制了单元格高度。

要设置每个单元格的最大事件数,请使用 max_month_events 选项:

scheduler.config.max_month_events = 3;
..
scheduler.init('scheduler_here', new Date(2019,5,30), "month");

如果事件数量超过设定的上限,将会出现“View more”链接。点击该链接会跳转到日视图,完整显示全部事件。

Related sample:  'View more' link in the Month view

隐藏视图 X 轴上的某些天

如果需要从时间轴上排除某些天(如只显示工作日,隐藏周末),可以使用 ignore_month() 方法。
此函数以单元格日期为参数。对于需要隐藏的日期,返回 true 即可。

// 0 表示周日,6 表示周六
scheduler.ignore_month = function(date){
    if (date.getDay() == 6 || date.getDay() == 0) // 隐藏周六和周日
        return true;
};

Related sample:  Hiding week days in the scale of Month view

将日期数字显示为可点击链接

月视图中的日期数字可以设置为可点击,点击后打开对应日期的指定视图。

要实现日期数字可点击:

  1. 在页面上启用 active_links 扩展:
    scheduler.plugins({
        active_links: true
    });
  2. 可选)设置 active_link_view 选项,指定点击日期时打开的视图类型。默认会打开 日视图
    // 点击日期时打开周视图
    scheduler.config.active_link_view = "week";
    ...
    scheduler.init('scheduler_here', new Date(2012,7,6), "month");

Related sample:  Month days as links

通过拖拽调整事件大小(ver. 4.1+)

默认情况下,月视图中无法通过拖拽调整事件大小(只能通过编辑表单)。

如需通过拖拽调整多日事件的大小,请启用 resize_month_events 选项:

// 允许通过拖拽调整多日事件大小
scheduler.config.resize_month_events = true;
scheduler.init('scheduler_here', new Date(2019,0,10), "month");

Related sample:  Resizable events in Month view

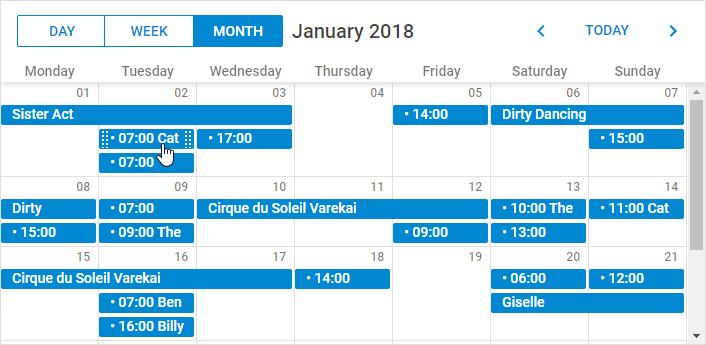

如需允许通过拖拽同时调整单日和多日事件的大小,还需将 resize_month_timed 选项设为 true

// 允许通过拖拽调整单日和多日事件大小
scheduler.config.resize_month_events = true;scheduler.config.resize_month_timed = true;  scheduler.init('scheduler_here', new Date(2019,0,10), "month");

请注意:
