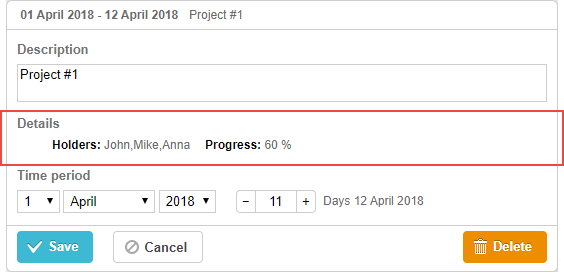

模板控件

这是一个用于容纳部分 HTML 内容的容器。

gantt.config.lightbox.sections = [
    {name:"description", height:38, map_to:"text", type:"textarea", focus:true},
    {name:"template", height:16, type:"template", map_to:"my_template"},     {name:"time", height:72, type:"duration", map_to:"auto"}
];

gantt.locale.labels.section_template = "Details";

gantt.attachEvent("onBeforeLightbox", function(id) {
    var task = gantt.getTask(id);
    task.my_template = "<span id='title1'>Holders: </span>"+ task.users
    +"<span id='title2'>Progress: </span>"+ task.progress*100 +" %";
    return true;
});

Related sample:  Template control

初始化

要在 lightbox 中包含 template 控件,需要完成以下步骤:

1) 在 lightbox 配置中添加一个 section:

gantt.config.lightbox.sections = [
    {name:"description", height:38, map_to:"text", type:"textarea", focus:true},
    {name:"template", height:16, type:"template", map_to:"my_template"},     {name:"time", height:72, type:"duration", map_to:"auto"}
];

2) 为该 section 定义一个标签:

gantt.locale.labels.section_template = "Details";

3) 通过事件(如 onBeforeLightbox 事件)为控件填充内容:

gantt.attachEvent("onBeforeLightbox", function(id) {
    var task = gantt.getTask(id);
    task.my_template = "<span id='title1'>Holders: </span>"+ task.users
    +"<span id='title2'>Progress: </span>"+ task.progress*100 +" %";
    return true;
});

属性

以下是 template 控件常用的一些属性(完整列表请参见 这里):

  • name - (string) 指定 section 的名称
  • height - (number) 设置 section 的高度
  • map_to - (string) 该 section 映射的数据属性
  • type - (string) 定义section 控件的类型
  • focus - (boolean) 当设置为 true 时,lightbox 打开时该 section 会获得焦点
