单选按钮控件

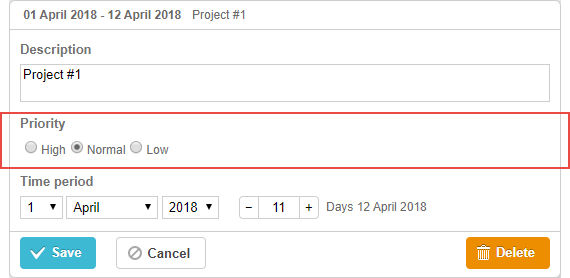

该控件用于呈现一组选项,同一时间只能选择其中一个。

Radio Button

Related sample:  Radio control

初始化

要在 lightbox 中包含单选按钮控件,需要进行以下设置:

1) 在 lightbox 配置中添加一个 section:

var opts = [
    {key: 1, label: "High"},
    {key: 2, label: "Normal"},
    {key: 3, label: "Low"}
];

gantt.config.lightbox.sections = [
    {name: "description", height: 38, map_to: "text", type: "textarea", focus: true},
    {name: "priority", height: 22, map_to: "priority", type: "radio", options: [opts]},     {name: "time", type: "duration", map_to: "auto"}
];

2) 为该 section 定义标签:

gantt.locale.labels.section_priority = "Priority";

Related sample:  Radio control

属性

以下是单选按钮控件常用的一些关键属性(完整列表请参见这里):

  • name - (string) section 的名称
  • map_to - (string) section 对应的数据属性
  • type - (string) section 控件的类型
  • options - (array) 定义可选项的对象数组(用于 selectcheckboxradio 控件)。每个对象代表一个选项,并包含:
    • key - (string) 选项的标识符,会与任务数据进行匹配以分配选项
    • label - (string) 选项显示的文本
  • focus - (boolean) 如果设为 true,lightbox 打开时该 section 会自动获得焦点
  • default_value - (any) 控件的默认值,仅在输入值未定义时应用

为控件填充数据

要为单选按钮控件指定选项,请使用 options 参数:

gantt.config.lightbox.sections = [
    {name: "priority", map_to: "priority", type: "radio", options: [
        {key: 1, label: "High"},
        {key: 2, label: "Normal"},
        {key: 3, label: "Low"},
    ]}
];

options 数组中的每一项都需要两个属性:

  • key - 选项的标识符
  • label - 选项显示的文本
