持续时间控件

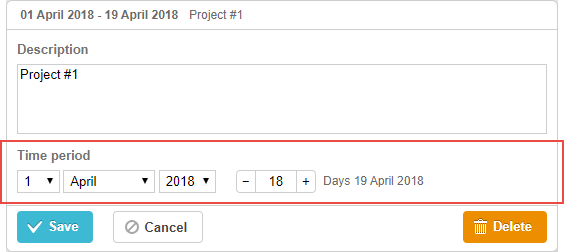

本节介绍了一组选择器,用于通过指定任务的开始日期和持续天数来设置任务的持续时间。

gantt.config.lightbox.sections=[
    {name:"description", height:70, map_to:"text", type:"textarea", focus:true},
    {name:"time",        height:72, map_to:"auto", type:"duration"} ];

Related sample:  Basic initialization

初始化

默认情况下,lightbox 包含一个 duration 控件。如需添加更多控件,请按照以下步骤操作:

1) 向 lightbox 配置中添加一个新分区:

gantt.config.lightbox.sections=[
    {name:"description", height:70, map_to:"text", type:"textarea",focus:true},
    {name:"time2",       height:72, map_to:"auto", type:"duration"},     {name:"time",        height:72, map_to:"auto", type:"duration"}
];

2) 为新分区定义标签:

gantt.locale.labels.section_time2 = "实际持续时间";

属性

以下是 time 控件常用的主要属性(完整列表见 这里):

  • name - (string) 分区的标识符
  • height - (number) 分区的高度
  • map_to - (string,object) 可为 "auto" 或指定映射到分区的数据属性对象
  • formatter - (object) durationFormatter 的实例
  • type - (string) 分区控件的类型
  • focus - (boolean) 若设为 true,lightbox 打开时该分区获得焦点
  • readonly - (boolean) 若设为 true,该分区为只读
  • year_range - (array,number) 定义年份选择器的范围,可以是:
    • year_range: [2005, 2025] - 从 2005 到 2025
    • year_range: 10 - 从当前年份减 10 到当前年份加 10
  • single_date - (boolean) 设为 true 时,仅显示 开始日期 选择器。编辑的任务仅由开始日期定义,持续时间为零。主要用于 里程碑
  • time_format - (string) 决定日期时间选择器的显示顺序

配置日期时间选择器

可以通过 time_format 属性自定义“时间区间”分区中的选择器(参见 日期格式规范):

Adding the time selector to the 'Time period' section

gantt.config.lightbox.sections = [
    {name:"description", height:38, map_to:"text", type:"textarea", focus:true},
    {name:"time",type:"duration",map_to:"auto",time_format:["%d","%m","%Y","%H:%i"]}];

time_format 数组中允许的元素包括:

  • "%d" - 天选择器
  • "%m" - 月选择器
  • "%Y" - 年选择器
  • "%H:%i" - 时间选择器(格式由 time_picker 模板控制)

你可以在数组中调整这些元素的顺序或省略某些元素,但数据格式本身不能更改。
例如,以下是一些变体:

// 时间在前
time_format:["%H:%i", "%m", "%d", "%Y"]
// 月份在前
time_format:["%m","%d", "%Y", "%H:%i"]
// 省略年份选择器
time_format:["%H:%i", "%m", "%d"]
// 错误用法
time_format:["%H:%i", "%M", "%d", "%Y"] // "%m" 被 "%M" 替换

映射到自定义开始/结束日期时间属性

默认映射

通常,time 和 duration 控件通过将 map_to 设置为 "auto"(map_to:"auto")来关联到所需的 'start_date' 和 'end_date' 属性。

自定义映射

如需将控件关联到自定义日期属性而非 'start_date' 和 'end_date',可为 map_to 属性使用对象:

gantt.config.lightbox.sections = [
    {name: "description", height: 72, type: "textarea", map_to:"text", focus: true},
    {name: "time",        height: 72, type: "duration", map_to:"auto"},
    {name: "baseline",    height: 72, type: "duration",      map_to:{start_date:"planned_start",end_date:"planned_end"}} ];

Related sample:  Display baselines

map_to 对象支持以下属性:

  1. start_date - 输入的开始日期存储的数据属性
  2. end_date - 可选,输入的结束日期存储的数据属性
  3. duration - 可选,由输入定义的持续时间存储的数据属性

如果省略某个属性,控件将默认关联到相应的必填日期属性。

切换分区可见性

你可以通过在 lightbox 分区配置中设置 type:"duration_optional"button: true 来切换持续时间分区的可见性:

gantt.config.lightbox.sections = [
  {name: "description", height: 70, map_to: "text", type: "textarea", focus: true},
  {name: "time", map_to: "auto", button: true, type: "duration_optional"} ];

同时,为切换按钮的两种状态定义标签:

gantt.locale.labels.time_enable_button = '计划';
gantt.locale.labels.time_disable_button = '取消计划';

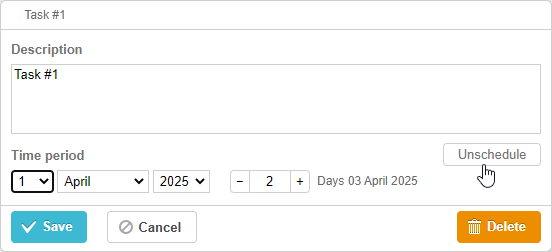

分区旁会出现一个切换按钮,允许你切换其可见性。当可见时,该分区的行为与 type:"duration" 分区一致。

如果关闭按钮,分区会消失但不会立即生效。保存后,通过 map_to 映射到持续时间控件的任务属性将被设置为 null

gantt.getTask(1);

// 示例返回值
{
    id: '1', text: 'Task #1', unscheduled: true,
    duration: 0, parent: '10',
    end_date: null, start_date: null,
    ...
}

此功能适用于将任务标记为未计划,或直接通过 UI 管理无基线的任务。请参见相关示例:

Related sample:  Unscheduled tasks

Related sample:  Baselines
