父任务控件

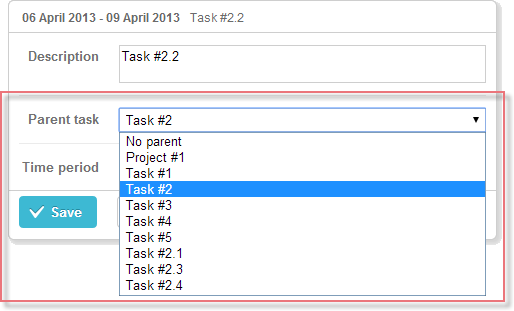

该控件提供一个下拉选择框,用于更改任务的父任务。它会加载甘特图中展示的所有任务,并支持应用过滤规则以及自定义选项的显示方式。除此之外,其使用方式与 Select 控件 控件相同。

gantt.config.lightbox.sections = [
    {name:"description", height:38, map_to:"text", type:"textarea", focus:true},
    {name:"parent", type:"parent", allow_root:"true", root_label:"No parent"},     {name:"time", height:72, type:"time", map_to:"auto"}
];

Related sample:  Parent selector

初始化

要在 lightbox 中包含 parent 控件,需完成以下步骤:

1) 在 lightbox 配置中添加一个 section:

gantt.config.lightbox.sections = [
    {name:"description", height:38, map_to:"text", type:"textarea",focus:true},
    {name:"parent", type:"parent", allow_root:"true", root_label:"No parent"},       {name:"time", height:72, type:"duration", map_to:"auto"}
];

2) 为该 section 定义标签:

gantt.locale.labels["section_parent"] = "Parent task";

Related sample:  Parent selector

属性

以下是 parent 控件常用的一些主要属性(完整列表请参见 这里):

  • name - (string) section 的名称
  • height - (number) section 的高度
  • map_to - (string) 映射到该 section 的数据属性名
  • type - (string) section 控件的类型
  • focus - (boolean) 若设置为 true,lightbox 打开时该 section 获得焦点
  • allow_root - (boolean) 若为 "true",选项列表中会包含将根级作为父任务的选项;需与 root_label 配合使用
  • root_label - (string) 根级父任务选项的标签;与 allow_root 一起使用
  • filter - (function) 用于筛选下拉选项的过滤函数。该函数接收任务 id 和任务对象作为参数
  • sort - (function) 用于排序下拉选项的排序函数
  • template - (function) 用于自定义下拉选项显示方式的模板函数

选项过滤

如需控制 parent 控件中显示哪些选项,可使用 filter 属性:

过滤,仅显示第一级任务

gantt.config.lightbox.sections = [
    {name:"description", height:38, map_to:"text", type:"textarea", focus:true},
    {name:"parent", type:"parent",  filter:function(id, task){         if(task.$level > 1){                     return false;             }else{              return true;         }     }},
    {name:"time", height:72, type:"time", map_to:"auto"}
];

Related sample:  Parent selector

filter 函数接收两个参数:

  • id - (string, number) 任务的 id
  • task - (object) 任务对象

返回值:

  • true 表示该任务会出现在选项列表中
  • false 表示该任务不会出现在选项列表中

选项排序

如需对 parent 控件中的选项进行排序,可使用 sort 属性:

按标题长度对任务排序

function sortByLength(a,b){
    a = a.text.length();
    b = b.text.length();
    return a>b?1:(a<b?-1:0);
};
gantt.config.lightbox.sections = [
    {name:"description", height:38, map_to:"text", type:"textarea", focus:true},
    {name:"parent", type:"parent",  sort:sortByLength},     {name:"time", height:72, type:"time", map_to:"auto"}
];

sort 函数用于比较相邻的两个选项,并返回:

  • 1 - 第一个选项排在第二个前面
  • -1 - 第二个选项排在第一个前面
  • 0 - 两个选项顺序不变

选项模板

如需自定义 parent 控件中选项的显示方式,可使用 template 属性:

gantt.config.lightbox.sections = [
    {name:"description", height:38, map_to:"text", type:"textarea", focus:true},
    {name:"parent", type:"parent",  template(start,end,ev){        var title = ev.id+"."+ev.text;        return title;    }},     {name:"time", height:72, type:"time", map_to:"auto"}
];

template 函数接收三个参数:

  • start - (Date) 事件的开始日期
  • end - (Date) 事件的结束日期
  • ev - (object) 事件对象

返回值为该控件下拉选项的显示内容。

如果未设置 'template' 属性,选项将根据 task_text 中的模板进行格式化。
