dhtmlxGantt with Salesforce LWC

This tutorial describes how to add dhtmlxGantt into a Salesforce Lightning Web Component.

Check the online demo on integrating DHTMLX components with Salesforce LWC (Login: user, Password: demo). The source code for the demo is provided on GitHub.

If you use some other technology, check the list of available integration variants below:

We will use Salesforce CLI to create Lightning Web Component and upload it to an organization. You can also install Salesforce Extension Pack" to Visual Studio Code for working with development orgs.

note

The complete source code of the demo created in this tutorial is available on GitHub.

You can have a look at the video guide that shows how to create a Gantt chart with Salesforce LWC.

Prerequisites​

Install Salesforce CLI if you don't have it. See this article for installation guidance.

Step 1. Creating a project​

Sign up for a free developer account if you don't have one. See this article for installation guidance.

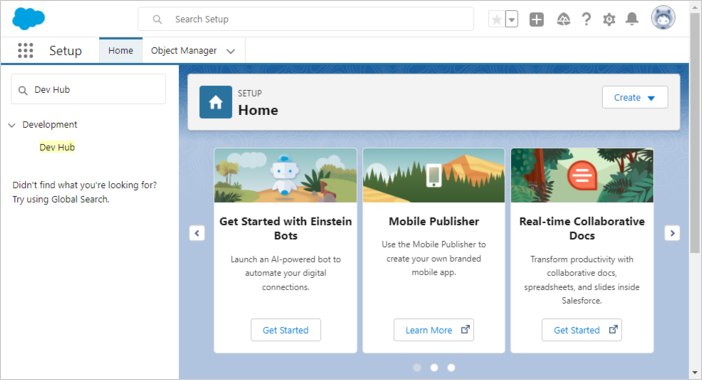

On the left in the search bar, find and select Dev Hub:

sf_devhub

In the new settings window, select Enable Dev Hub:

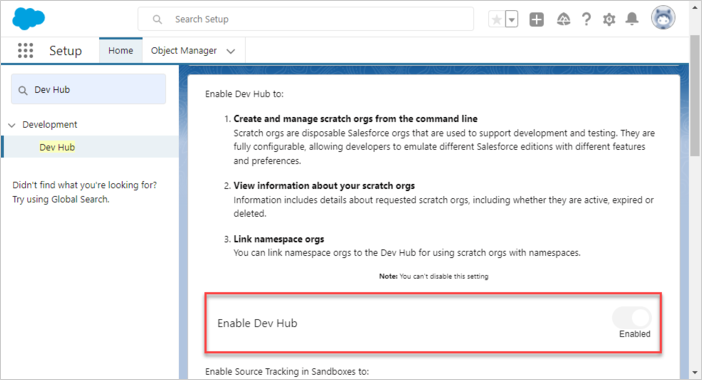

sf_enabledh

Let's create a base directory for Salesforce DX project:

$ mkdir ~/salesforce

Create a Salesforce DX project via CLI:

$ cd ~/salesforce
$ sfdx project generate -n gantt-salesforce-app
    target dir = C:UsersUsersalesforce
        create gantt-salesforce-appconfigproject-scratch-def.json
        create gantt-salesforce-appREADME.md
        create gantt-salesforce-appsfdx-project.json
        create gantt-salesforce-app.huskypre-commit
        create gantt-salesforce-app.vscodeextensions.json
        create gantt-salesforce-app.vscodelaunch.json
        create gantt-salesforce-app.vscodesettings.json
        create gantt-salesforce-appforce-appmaindefaultlwc.eslintrc.json
        create gantt-salesforce-appforce-appmaindefaultaura.eslintrc.json
        create gantt-salesforce-appscriptssoqlaccount.soql
        create gantt-salesforce-appscriptsapexhello.apex
        create gantt-salesforce-app.eslintignore
        create gantt-salesforce-app.forceignore
        create gantt-salesforce-app.gitignore
        create gantt-salesforce-app.prettierignore
        create gantt-salesforce-app.prettierrc
        create gantt-salesforce-appjest.config.js
        create gantt-salesforce-apppackage.json

Go to the created project:

$ cd gantt-salesforce-app

Step 2. Authorization​

Authorize an Org using the Web Server Flow:

$ sfdx org login web -d

Successfully authorized ... with org ID ...

Update your project configuration file (sfdx-project.json). Set the "sfdcLoginUrl" parameter to your "My Domain URL". You can find your org's "My Domain URL" on the "My Domain" setup page. For example:

sf_mydomain

gantt-salesforce-app/sfdx-project.json
"sfdcLoginUrl" : "https://xbs2-dev-ed.my.salesforce.com"

Create a Scratch Org:

$ sfdx org create scratch -f config/project-scratch-def.json -d

Creating Scratch Org...
RequestId: 2SR5j0000006JhCGAU
(https://xbsoftware2-dev-ed.my.salesforce.com/2SR5j0000006JhCGAU)
OrgId: 00DH40000000s0D
Username: test-tc0telfqhudt@example.com
✓ Prepare Request
✓ Send Request
✓ Wait For Org
✓ Available
✓ Authenticate
✓ Deploy Settings
Done

Your scratch org is ready.

Step 3. Adding Gantt to Salesforce​

In order to start using the library, we need to upload it inside Salesforce as a Static Resource. Thus, open your scratch org:

$ sfdx org open

Now, open the "Static Resources" tab and press the "New" button

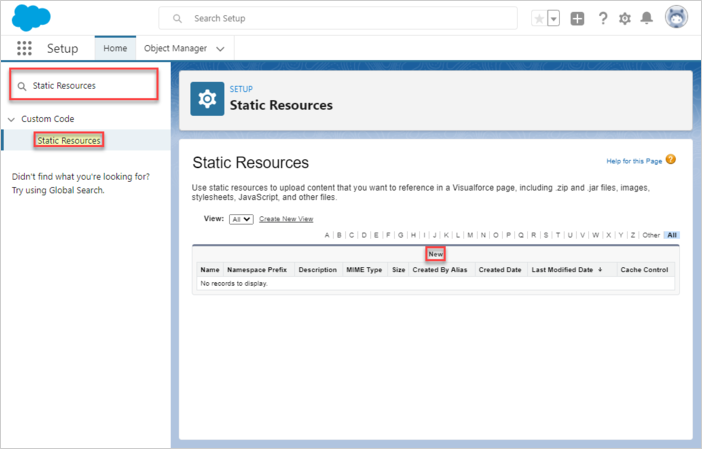

sf_static_resources

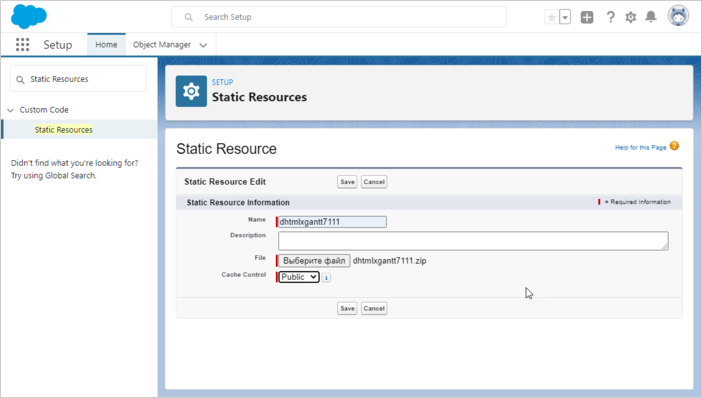

Give it a meaningful name (we use "dhtmlxgantt7111"), choose the ZIP archive with the library itself (the archive must contain the dhtmlxgantt.js and dhtmlxgantt.css files), and choose the "Public" Cache Control in order to improve the performance. Press the "Save" button.

sf_gantt_file

Now we have dhtmlxGantt inside Salesforce.

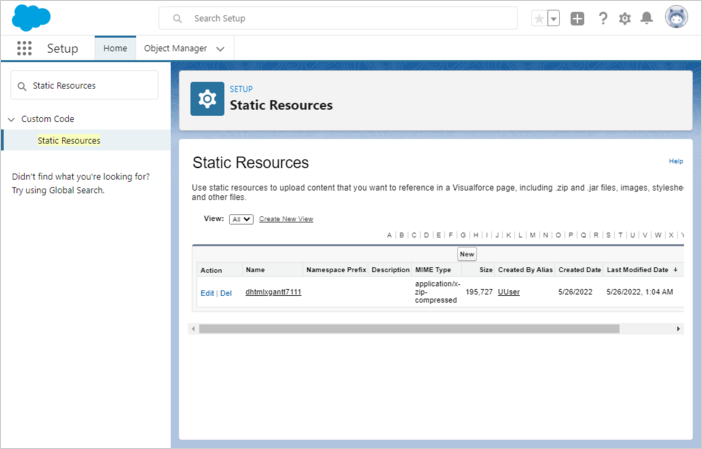

sf_gantt_in_sf

Step 4. Creating Data Model​

The core dhtmlxGantt entities are Tasks and Links. A good approach is to store all properties of dhtmlxGantt entities as plain JSON inside Salesforce. Let's create Tasks and Links objects. Open the Object Manager and select "Create" then "Custom Object":

sf_object_manager

Task object​

Give the name for the task object, let it be GanttTask/GanttTasks.

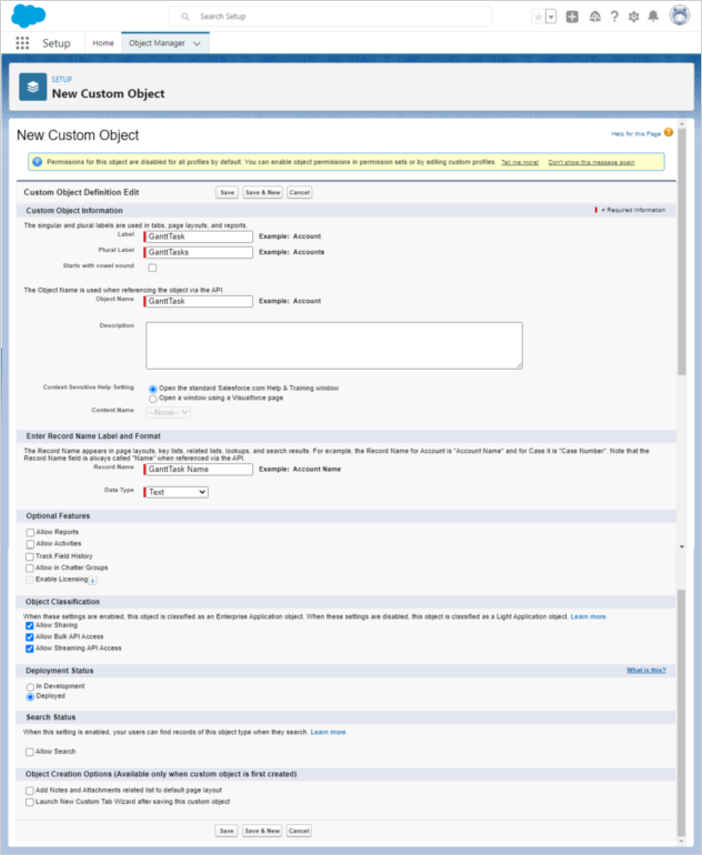

sf_task_object

note

The record name must match the object name, for example:

Object Name: GanttTask => Record Name: GanttTask Name

Press the "Save" button.

After the object is created, open the "Fields & Relationships" tab. Press the "New" button.

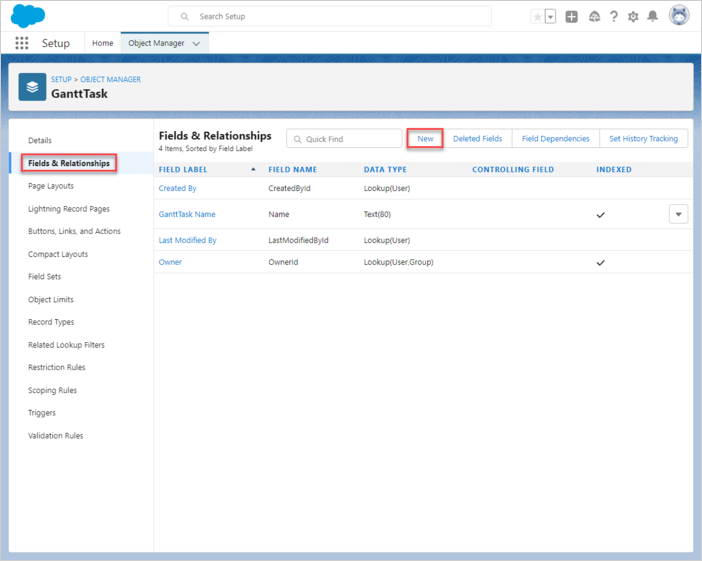

sf_fields

  • Duration

Select "Number" as the Data Type and press the "Next" button.

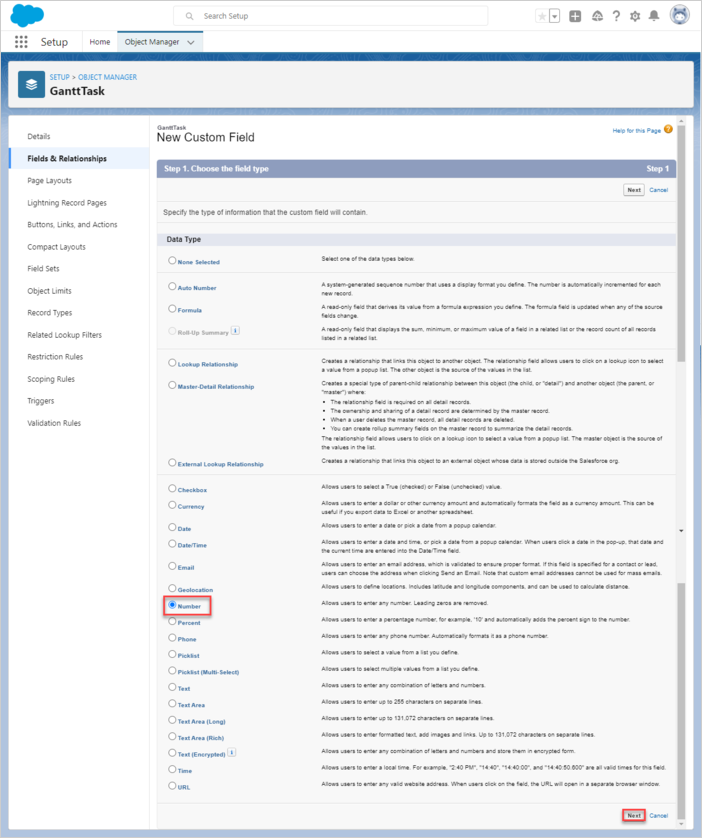

sf_data_type

Name it "Duration". It stores the JSON-serialized Task properties. Press the "Next" button until the "Save & New" button is available.

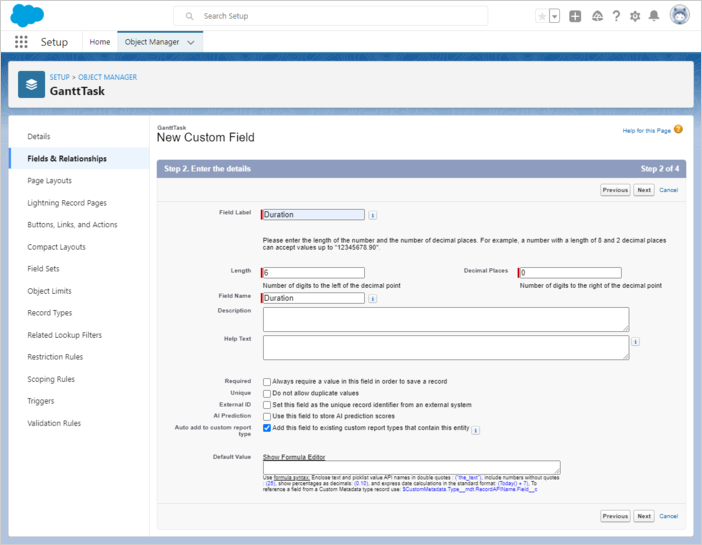

sf_new_field

Press the "Next" button (accepting all default settings) until the "Save & New" button is available.

  • Parent

Create a "Parent" field. Select "Text" as the Data Type.

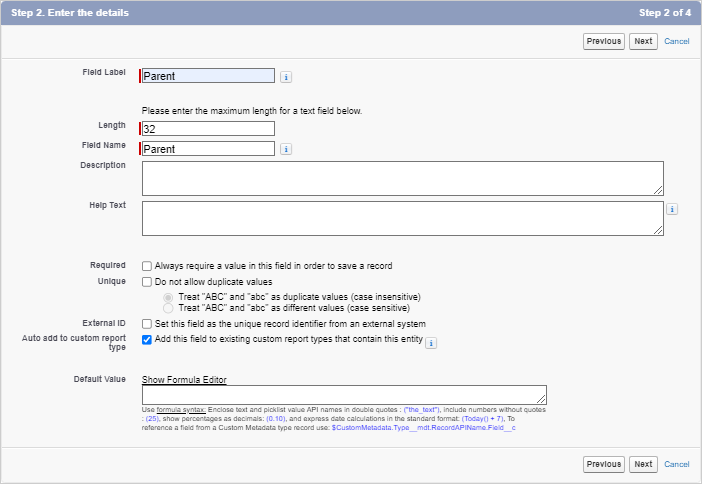

sf_parent

Press the "Next" button (accepting all default settings) until the "Save & New" button is available.

  • Progress

Create a "Progress" field. Select "Number" as the Data Type.

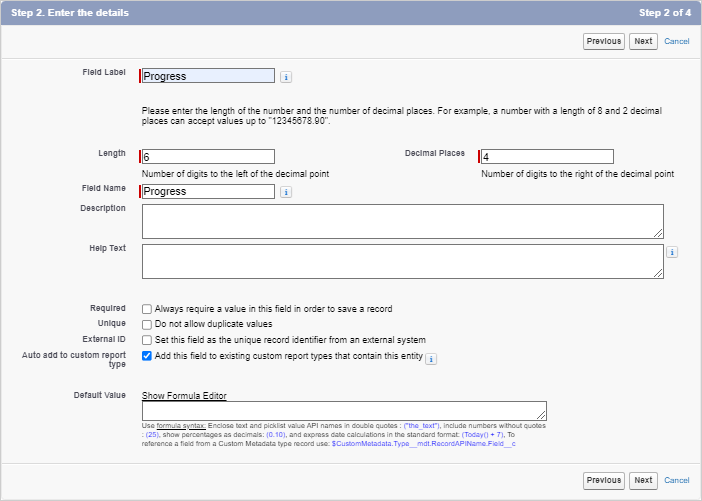

sf_progress

Press the "Next" button (accepting all default settings) until the "Save & New" button is available.

  • Start date

Create a "Start Date" field. Select "Date/Time" as the Data Type.

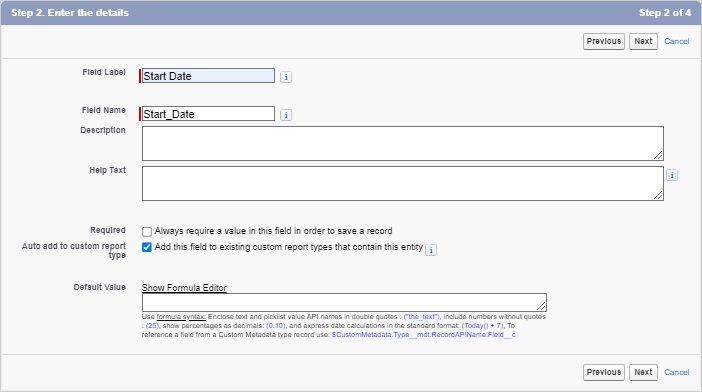

sf_start_date

Press the "Next" button (accepting all default settings) until the "Save" button is available.

In the end it should look like this:

sf_gantttask

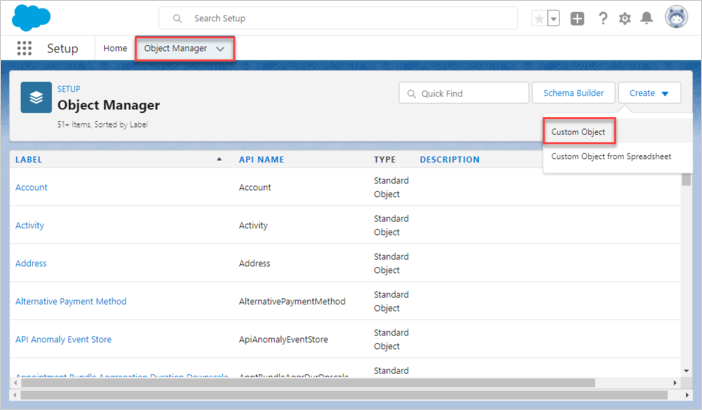

Open the Object Manager and select "Create" then "Custom Object":

Give the name for the link object, let it be GanttLink/GanttLinks.

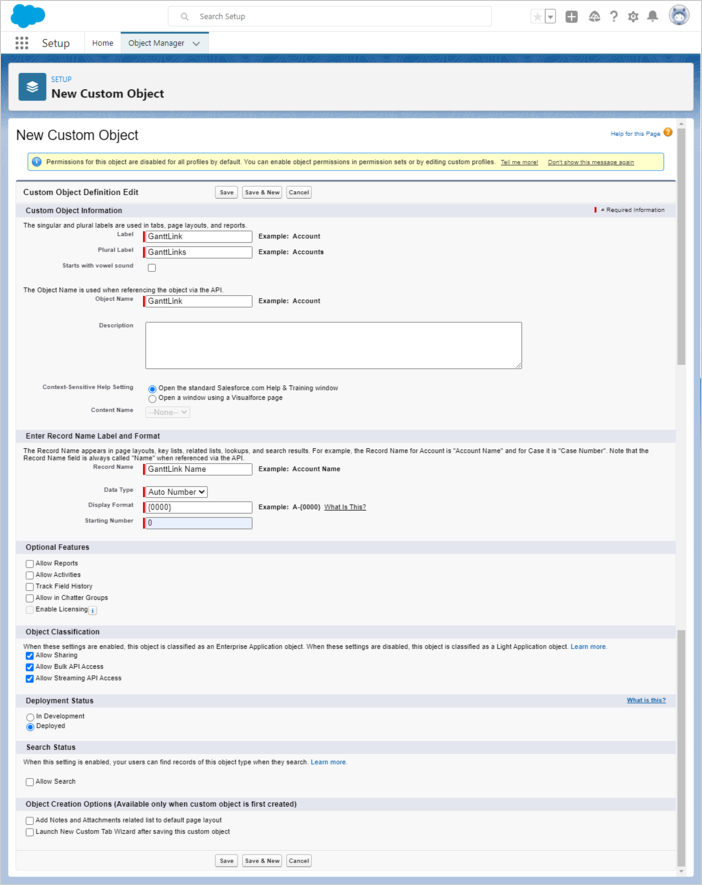

sf_link_object

note

The record name must match the object name, for example:

Object Name: GanttLink => Record Name: GanttLink Name

Next, create the required fields.

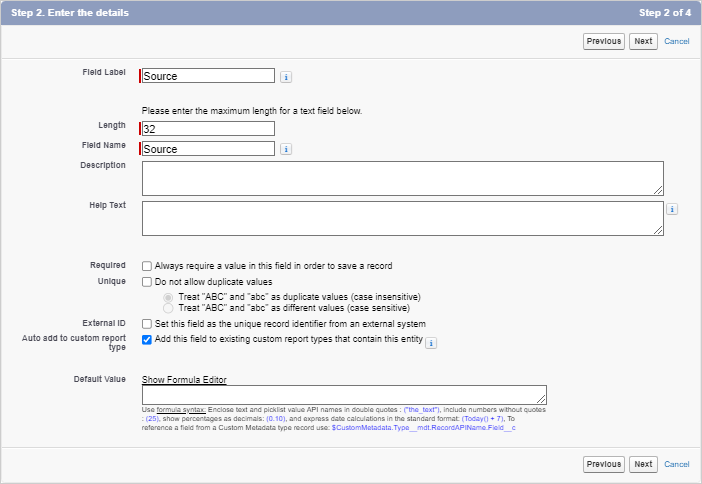

  • Source

Create a "Source" field. Select "Text" as the Data Type.

sf_source

Press the "Next" button (accepting all default settings) until the "Save & New" button is available.

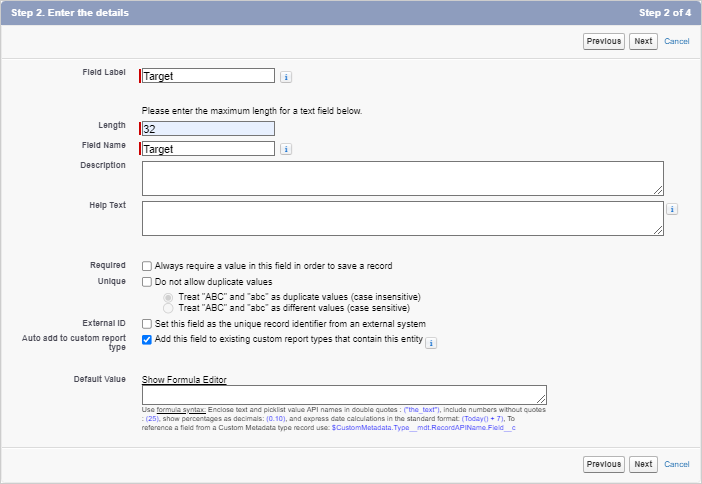

  • Target

Create a "Target" field. Select "Text" as the Data Type.

sf_target

Press the "Next" button (accepting all default settings) until the "Save & New" button is available.

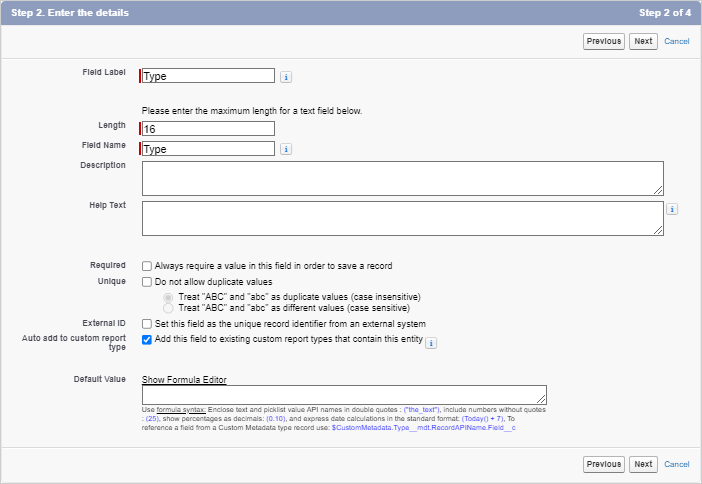

  • Type

Create a "Type" field. Select "Text" as the Data Type.

sf_type

Press the "Next" button (accepting all default settings) until the "Save" button is available.

In the end it should look like this:

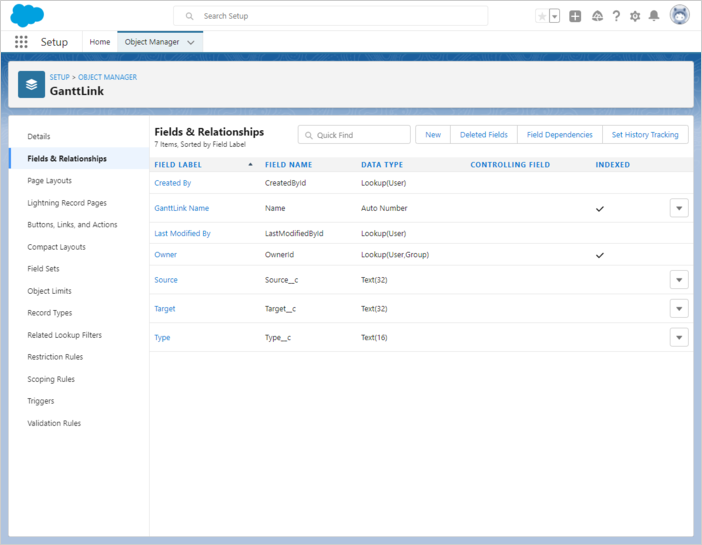

sf_ganttlink

Step 5. Creating a Lightning Web Component​

To create a Lightning Web Component, run the command:

$ sfdx lightning generate component --type lwc -n gantt -d force-app/main/default/lwc

target dir =
C:UsersUsersourcesalesforcegantt-salesforce-appforce-appmaindefaultlwc
   create force-appmaindefaultlwcganttgantt.js
   create force-appmaindefaultlwcganttgantt.html
   create force-appmaindefaultlwcganttgantt.js-meta.xml

Change the component definition in gantt.js-meta.xml to expose it in the Lightning App Builder:

force-app/main/default/lwc/gantt/gantt.js-meta.xml
<?xml version="1.0" encoding="UTF-8"?>
<LightningComponentBundle xmlns="http://soap.sforce.com/2006/04/metadata">
    <apiVersion>54.0</apiVersion>
    <isExposed>true</isExposed>
    <targets>
        <target>lightning__AppPage</target>
    </targets>
    <targetConfigs>
        <targetConfig targets="lightning__AppPage">
            <property name="height" label="Height" type="Integer" default="800" />
        </targetConfig>
    </targetConfigs>
</LightningComponentBundle>

Open gantt.html and add the following code into it:

force-app/main/default/lwc/gantt/gantt.html
<template>
    <div class="thegantt" lwc:dom="manual" style='width: 100%;'></div>
</template>

Open gantt.js and add the following code into it:

force-app/main/default/lwc/gantt/gantt.js
/* eslint-disable guard-for-in */
/* eslint-disable no-undef */
import { LightningElement, api } from "lwc";
import { ShowToastEvent } from "lightning/platformShowToastEvent";
import { loadStyle, loadScript } from "lightning/platformResourceLoader";
import { createRecord, updateRecord, deleteRecord } from "lightning/uiRecordApi";

// Static resources
import GanttFiles from "@salesforce/resourceUrl/dhtmlxgantt7111";

// Controllers
import getTasks from "@salesforce/apex/GanttData.getTasks";

function unwrap(fromSF) {
    const data = fromSF.tasks.map((a) => ({
        id: a.Id,
        text: a.Name,
        start_date: a.Start_Date__c,
        duration: a.Duration__c,
        parent: a.Parent__c,
        progress: a.Progress__c,
        type: a.Task_Type__c,
    }));
    const links = fromSF.links.map((a) => ({
        id: a.Id,
        source: a.Source__c,
        target: a.Target__c,
        type: a.Type__c
    }));
    return { data, links};
}

export default class GanttView extends LightningElement {
    static delegatesFocus = true;

    @api height;
    ganttInitialized = false;

    renderedCallback() {
        if (this.ganttInitialized) {
            return;
        }
        this.ganttInitialized = true;

        Promise.all([
            loadScript(this, GanttFiles + "/dhtmlxgantt.js"),
            loadStyle(this, GanttFiles + "/dhtmlxgantt.css")
        ])
            .then(() => {
                this.initializeUI();
            })
            .catch((error) => {
                this.dispatchEvent(
                    new ShowToastEvent({
                        title: "Error loading Gantt",
                        message: error.message,
                        variant: "error"
                    })
                );
            });
    }

    initializeUI() {
        const root = this.template.querySelector(".thegantt");
        root.style.height = this.height + "px";

        //uncomment the following line if you use the Enterprise or Ultimate version
        //const gantt = window.Gantt.getGanttInstance();
        gantt.templates.parse_date = (date) => new Date(date);
        gantt.templates.format_date = (date) => date.toISOString();

        gantt.init(root);
        getTasks().then((d) => {
            const chartData = unwrap(d);
            gantt.parse({
                tasks: chartData.data,
                links: chartData.links
            });
        });

        ///↓↓↓ saving changes back to SF backend ↓↓↓
        gantt.createDataProcessor({
            task: {
                create: (data) => {
                    console.log("createTask",data);
                    const insert = {
                        apiName: "GanttTask__c",
                        fields: {
                            Name: data.text,
                            Start_Date__c: data.start_date,
                            Duration__c: data.duration,
                            Parent__c: String(data.parent),
                            Progress__c: data.progress
                        }
                    };
                    gantt.config.readonly = true; // suppress changes
                                                  // until saving is complete
                    return createRecord(insert).then((res) => {
                        gantt.config.readonly = false;
                        return { tid: res.id, ...res };
                    });
                },
                update: (data, id) => {
                    console.log("updateTask",data);
                    const update = {
                        fields: {
                            Id: id,
                            Name: data.text,
                            Start_Date__c: data.start_date,
                            Duration__c: data.duration,
                            Parent__c: String(data.parent),
                            Progress__c: data.progress
                        }
                    };
                    return updateRecord(update).then(() => ({}));
                },
                delete: (id) => {
                    return deleteRecord(id).then(() => ({}));
                }
            },
            link: {
                create: (data) => {
                    const insert = {
                        apiName: "GanttLink__c",
                        fields: {
                            Source__c: data.source,
                            Target__c: data.target,
                            Type__c: data.type
                        }
                    };
                    return createRecord(insert).then((res) => {
                        return { tid: res.id };
                    });
                },
                update: (data, id) => {
                    const update = {
                        apiName: "GanttLink__c",
                        fields: {
                            Id: id,
                            Source__c: data.source,
                            Target__c: data.target,
                            Type__c: data.type
                        }
                    };
                    return updateRecord(update).then(() => ({}));
                },
                delete: (id) => {
                    return deleteRecord(id).then(() => ({}));
                }
            }
        });
    }
}

Step 6. Creating an Apex class​

The next step is to create a class that will enable interactions between the Lighting Component and our data model.

$ sfdx apex generate class -n GanttData -d force-app/main/default/classes

target dir =
C:UsersUsersalesforcegantt-salesforce-appforce-appmaindefaultclasses
   create force-appmaindefaultclassesGanttData.cls
   create force-appmaindefaultclassesGanttData.cls-meta.xml

After creation, open GanttData.cls and add the following code into it:

force-app/main/default/classes/GanttData.cls
public with sharing class GanttData {

    @RemoteAction
    @AuraEnabled(cacheable="true)"
    public static Map<String, Object> getTasks() {

        // fetching the Records via SOQL
        List<GanttTask__c> Tasks = new List<GanttTask__c>();
        Tasks = [SELECT Id, Name, Start_Date__c, Duration__c,
                    Parent__c FROM GanttTask__c];

        List<GanttLink__c> Links = new List<GanttLink__c>();
        Links = [SELECT Id, Type__c, Source__c, Target__c FROM GanttLink__c];

        Map<String, Object> result = new Map<String, Object>{
            'tasks' => Tasks, 'links' => Links };
        return result;
   }
}

Pull Source from the Scratch Org to Your Project

$ sfdx project retrieve start

and then push the sources to the Scratch Org

$ sfdx project deploy start

Step 7. Creating Lightning Page​

Open the "Lightning App Builder", create a new Lightning Page.

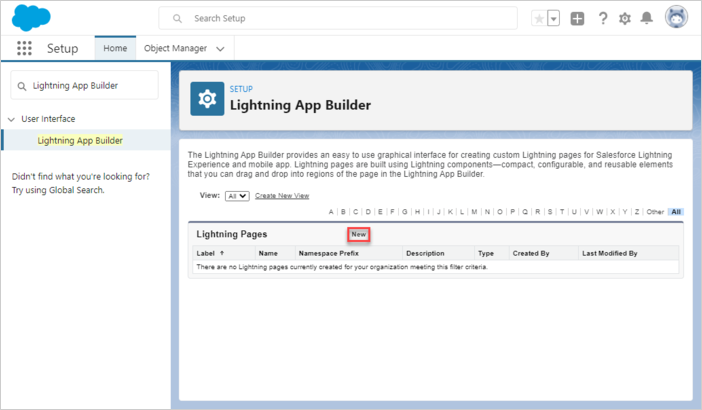

sf_lightning_app

Pick "App Page" then page name and layout.

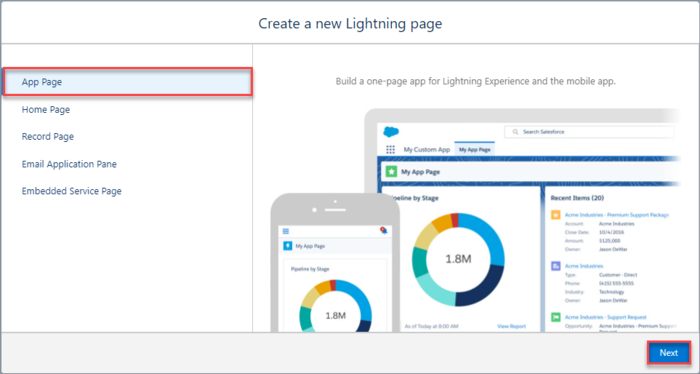

sf_new_page

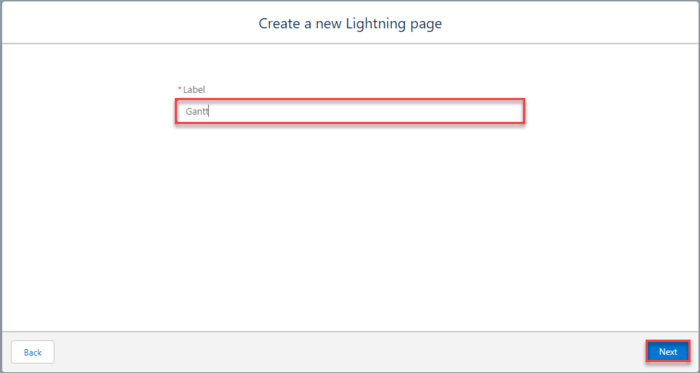

sf_page_name

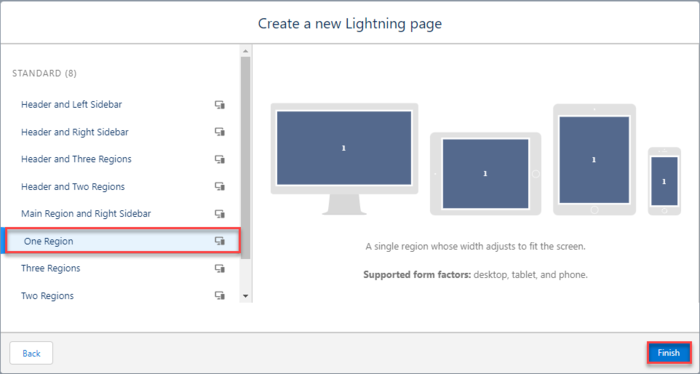

sf_page_layout

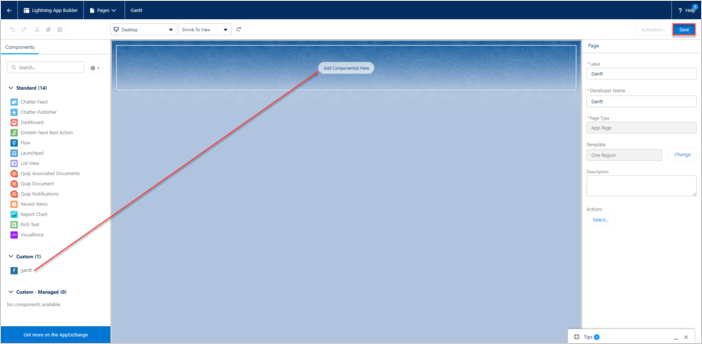

You should see a Gantt custom component available for the new page. Append it to any region and save.

sf_gantt

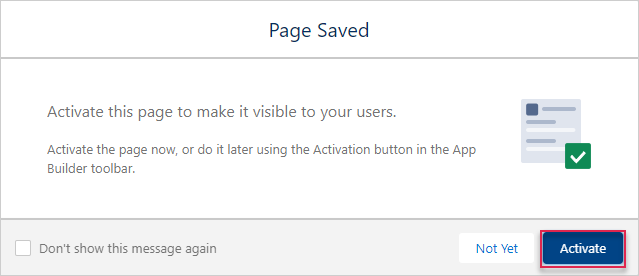

Activate the page.

sf_saved_page

Save the changes.

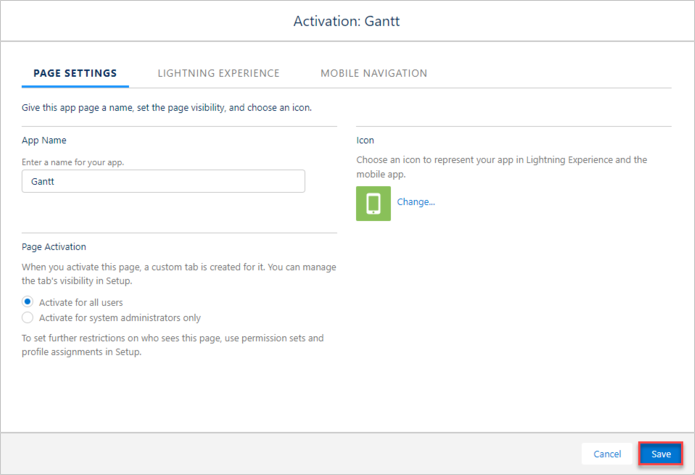

sf_activate_gantt

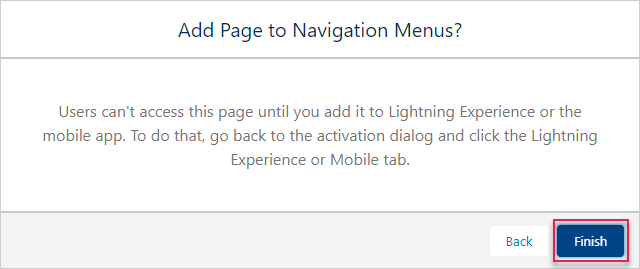

sf_add_page_to_nm

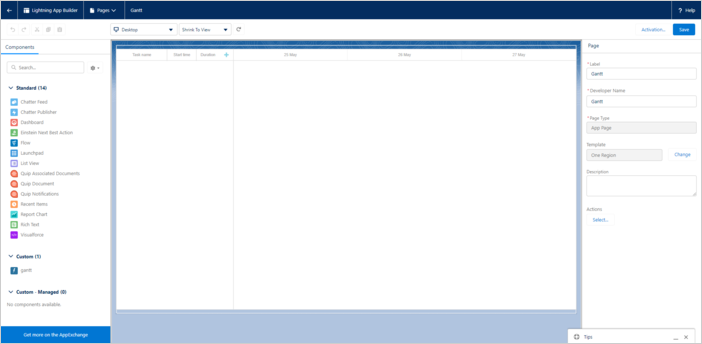

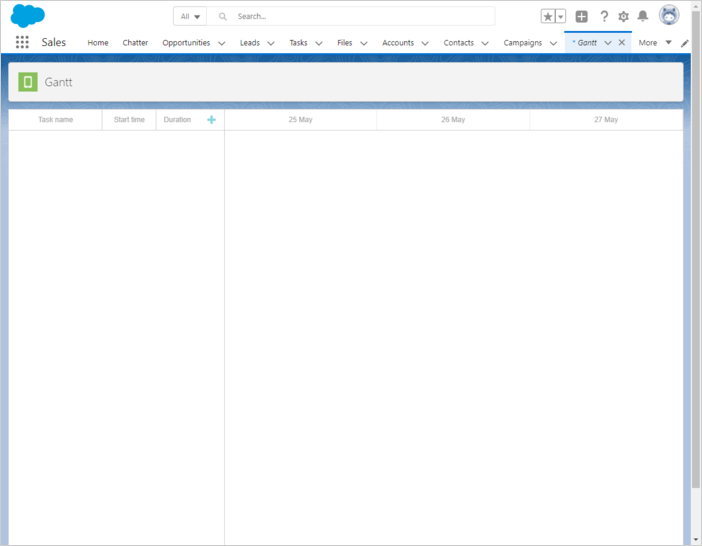

sf_gantt_page

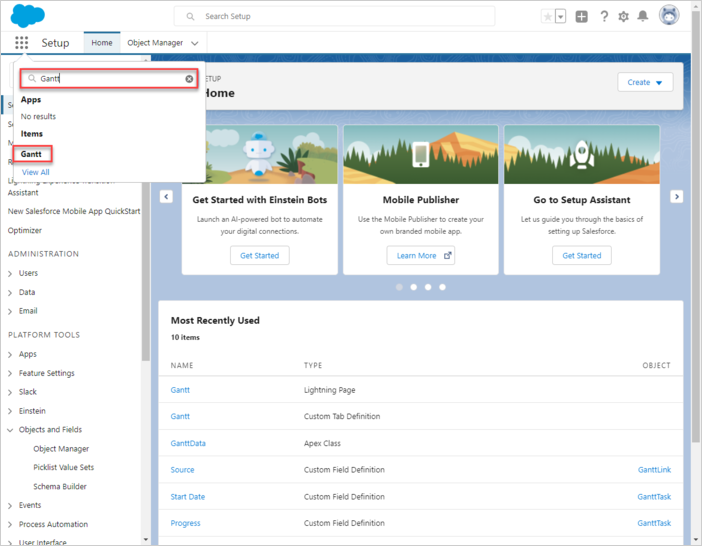

Open the application page. It should be accessible in the app launcher if you click it and type Gantt.

sf_app_launcher

If everything went well, you should see a simple gantt demo running in the Lightning Page.

sf_final_page

Application security​

Gantt doesn't provide any means of preventing an application from various threats, such as SQL injections or XSS and CSRF attacks. It is important that responsibility for keeping an application safe is on the developers implementing the application. Read the details in the corresponding article. Salesforce is built with security to protect your data and applications. You can also implement your own security scheme to reflect the structure and needs of your organization. For more information, please see the Salesforce Security Guide. Here you can find out what do you need to be secure.

Trouble shooting​

In case you've completed the above steps to implement Gantt integration with Salesforce, but Gantt doesn't render tasks and links on a page, have a look at the Troubleshooting Backend Integration Issues article. It describes the ways of identifying the roots of the problems.

What's next​

Now you have a fully functioning gantt. You can view the full code on GitHub, clone or download it and use it for your projects.

You can also check guides on the numerous features of gantt or tutorials on integrating Gantt with other backend frameworks.
