onBeforeSplitTaskDisplay

Description​

Fires before a part of the split task is displayed on the Gantt chart

onBeforeSplitTaskDisplay: (id: number | string, task: Task, parent: any) => boolean;

Parameters​

  • id - (required) number | string - the id of the subtask
  • task - (required) Task - the object of the subtask
  • parent - (required) object - the object of the parent task

Returns​

  • result - (boolean) - defines whether the subtask of the split task will be displayed on the page (true) or not (false)

Example​

gantt.attachEvent("onBeforeSplitTaskDisplay", function (id, task, parent) {
    if (task.duration < 3) {
        return false;
    }
    return true;
});

Details​

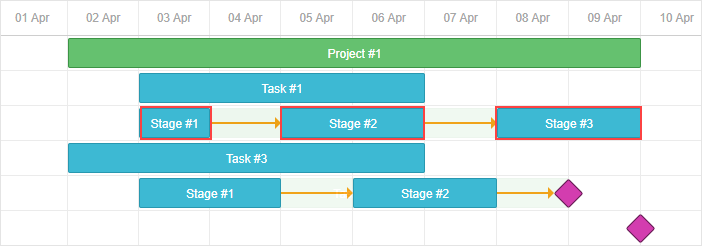

split tasks

When the split task is rendered, firstly the onBeforeTaskDisplay event is fired for the parent item (a task with render:"split"). Then "onBeforeSplitTaskDisplay" is fired for its every subtask. Returning false from "onBeforeSplitTaskDisplay" prevents a subtask from being displayed.

note

sample: Filter split tasks

Change log​

  • added in v8.0
