Combo(组合框)

本节介绍由 DHTMLX Combo 组件 提供的组合框。

var holders = [
    { key: 1, label: 'James' },
    { key: 2, label: 'Alex' },
    { key: 3, label: 'Antony' },
    { key: 4, label: 'Andrew' }
];

scheduler.locale.labels.section_holder = "Holder";

scheduler.config.lightbox.sections = [
    { name:"description", height:50, map_to:"text", type:"textarea", focus:true },
    { name:"holders", options:holders, map_to:"holders", type:"combo",
    image_path:"../common/dhtmlxCombo/imgs/", height:30, filtering:true},
    { name:"time", height:72, type:"time", map_to:"auto"}
];

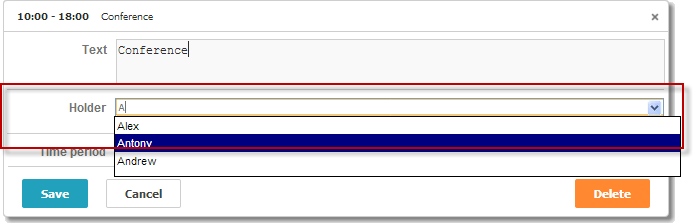

Related sample:  Combo box in the lightbox

初始化

要在 lightbox 中包含 Combo 控件,请按照以下步骤操作:

  1. 引入 dhtmlxCombo 文件:
    <script src="../codebase/dhtmlxscheduler.js" ...></script>
    <link rel="stylesheet" href="../codebase/dhtmlxscheduler.css" ...>

    <link rel="stylesheet" href="common/dhtmlxCombo/dhtmlxcombo.css" ..>
    <script src="common/dhtmlxCombo/dhtmlxcombo.js" ...></script>
  2. 在页面上启用 editors 扩展:
    scheduler.plugins({
        editors: true
    });
  3. 在 lightbox 配置中添加相应的 section:
    scheduler.config.lightbox.sections = [
        { name:"description", ... },
        { name:"holders", options:holders, map_to:"holders", type:"combo",
        image_path:"../common/dhtmlxCombo/imgs/", height:30, filtering:true},
        { name:"time", ...}
    ];
  4. 为该 section 设置标签:
    scheduler.locale.labels.section_holders = "Holder";

Related sample:  Combo box in the lightbox

属性

以下是 'combo' 控件常用的重要属性(完整列表请参见 此处):

为控件填充数据

要为 Combo 控件提供选项值,请使用 options 参数:

scheduler.config.lightbox.sections =
    {
        name:"holders", type:"combo",
        ...
        options:[
            { key: 1, label: 'James' },
            { key: 2, label: 'Alex' },
            { key: 3, label: 'Antony' },
            { key: 4, label: 'Andrew' }
    ]},
    ...
];

options 参数中的每一项都必须包含两个必需属性:

  • key - 选项的 id
  • label - 选项的显示文本

从服务器填充控件数据

要从服务器加载 Combo 选项,请使用 script_path 属性指定处理请求的服务端脚本 URL。

scheduler.config.lightbox.sections = [
    { name: "country", type: "combo", script_path: "data/combo_select", ... },
        ...
];

script_path 属性定义 combo 通过 AJAX 加载选项的 URL。

由于 combo 选择器基于 dhtmlxCombo,服务器应返回兼容格式的数据。 关于向 combo 添加数据的详细信息可参见 Loading Options 文章。

请求会在以下两种情况下发送:

1) 当 lightbox 打开且 combo 已有选中值时,控件会发送请求以加载该选项的 label。

请求包含一个 id 查询参数:

GET /url?id=1

响应应为仅包含指定 id 项目的数组,格式如下:

[
   { "value": 1, "text": "Marketing"}
]

2) 当用户在 combo 输入框中输入内容时,控件会加载过滤后的选项。

请求会携带输入内容作为 mask 查询参数:

GET /url?mask=al

服务器应返回所有匹配 mask 的项:

[
   { "value": 1, "text": "Albania"},
   { "value": 3, "text": "Algeria"},
]

如果你使用 PHP Connector 库,服务端代码可能如下所示:

<?php
    require_once('../../connector-php/codebase/combo_connector.php');
    require_once("../common/config.php");

    $combo = new ComboConnector($res, $dbtype);

    $combo->event->attach("beforeFilter", "by_id");
    function by_id($filter) {
        if (isset($_GET['id']))
            $filter->add("item_id", $_GET['id'], '=');
    }

    $combo->dynamic_loading(3);
    $combo->render_table("Countries","item_id","item_nm");

?>

Related sample:  Populating a combo box from the server

自动过滤模式

自动过滤模式指的是用户输入时选项会自动过滤。要启用此模式,请将 filtering 属性设置为 true

scheduler.config.lightbox.sections = [
    { name:"holders", type:"combo", filtering:true, ... },
    ...
];

请注意,无论数据是从客户端还是服务端加载,自动过滤都可以使用。

更多详情请参阅 dhtmlxCombo 文档中的 Filtering
