dhtmlxGantt는 콘텐츠를 편집하는 두 가지 방법을 제공합니다:

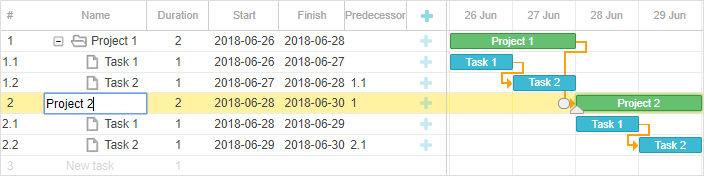

인라인 편집을 사용하면 그리드에서 바로 작업을 생성·수정하거나, 작업 간 연결을 설정하고, 시작/종료 날짜 또는 기간을 조정하는 등 다양한 작업을 내장 에디터만으로 수행할 수 있습니다.
인라인 편집을 활성화하려면 다음 단계를 따라야 합니다:
var textEditor = {type: "text", map_to: "text"};
var dateEditor = {type: "date", map_to: "start_date", min: new Date(2018, 0, 1),
max: new Date(2019, 0, 1)};
var durationEditor = {type: "number", map_to: "duration", min:0, max: 100};
gantt.config.columns = [
{name: "text", tree: true, width: '*', resize: true, editor: textEditor},
{name: "start_date", align: "center", resize: true, editor: dateEditor},
{name: "duration", align: "center", editor: durationEditor},
{name: "add", width: 44}
];
Related sample: Inline editing
inlineEditors 객체 API에 대한 자세한 내용은 Inline Editors Extension 문서를 참고하세요.
그리드에서 인라인 편집 구현 방법을 보여주는 동영상 가이드도 있습니다.
인라인 에디터는 editor_types 설정 객체에서 정의됩니다.
여러 가지 인라인 에디터가 기본 제공됩니다:
{ type: "duration", map_to: "duration", formatter: formatter }
이 에디터는 숫자와 기간 단위가 함께 포함된 기간(예: 5 days
)을 지정할 때 유용합니다. 기본적으로 Duration Formatter를 사용하며, 설정을 커스터마이즈하거나 사용자 정의 포매터를 지정할 수 있습니다.
var editors = {
text: {type: "text", map_to: "text"},
start_date: {type: "date", map_to: "start_date", min: new Date(2018, 0, 1),
max: new Date(2019, 0, 1)},
end_date: {type: "date", map_to: "end_date", min: new Date(2018, 0, 1),
max: new Date(2019, 0, 1)},
duration: {type: "number", map_to: "duration", min:0, max: 100},
priority: {type:"select", map_to:"priority", options:gantt.serverList("priority")},
predecessors: {type: "predecessor", map_to: "auto"}
};
v6.3부터 date 인라인 에디터에는 기본 최소값 또는 최대값이 지정되어 있지 않습니다.
타임스케일에 표시되는 날짜를 date 인라인 에디터의 min/max 값으로 동적으로 지정하려면(별도의 min/max 값을 지정하지 않은 경우), 동적 min/max 함수를 사용할 수 있습니다:
const dateEditor = {type: "date", map_to: "start_date",
min: function(taskId){
return gantt.getState().min_date
},
max: function( taskId ){
return gantt.getState().max_date
}
};
작업에 종료일 포함 형식을 사용하고, 그리드에서 인라인 편집을 제대로 지원하려면 다음과 같이 종료일 포함 에디터를 별도로 구현해야 합니다:
// 종료일 포함 에디터 구현
// 기본 에디터를 사용하되 set_value/get_value 메서드만 오버라이드
var dateEditor = gantt.config.editor_types.date;
gantt.config.editor_types.end_date = gantt.mixin({
set_value: function(value, id, column, node){
var correctedValue = gantt.date.add(value, -1, "day");
return dateEditor.set_value.apply(this, [correctedValue, id, column, node]);
},
get_value: function(id, column, node) {
var selectedValue = dateEditor.get_value.apply(this, [id, column, node]);
return gantt.date.add(selectedValue, 1, "day");
},
}, dateEditor);
var textEditor = {type: "text", map_to: "text"};
var startDateEditor = {type: "date", map_to: "start_date"};
var endDateEditor = {type: "end_date", map_to: "end_date"};
var durationEditor = {type: "number", map_to: "duration", min:0, max: 100};
gantt.config.columns = [
{name: "text", label: "Name", tree: true, width: 200, editor: textEditor,
resize: true},
{name: "duration", label: "Duration", width:80, align: "center",
editor: durationEditor, resize: true},
{name: "start_date", label: "Start", width:140, align: "center",
editor: startDateEditor, resize: true},
{name: "end_date", label: "Finish", width:140, align: "center",
editor: endDateEditor, resize: true}
];
// lightbox 및 그리드 템플릿도 종료일 포함 형식으로 표시
gantt.templates.task_end_date = function(date){
return gantt.templates.task_date(new Date(date.valueOf() - 1));
};
var gridDateToStr = gantt.date.date_to_str("%Y-%m-%d");
gantt.templates.grid_date_format = function(date, column){
if(column === "end_date"){
return gridDateToStr(new Date(date.valueOf() - 1));
}else{
return gridDateToStr(date);
}
}
종료일 포매팅에 대한 자세한 내용은 작업 종료일 표시 & 종료일 포함 문서를 참고하세요.
이 기능은 PRO 에디션에서만 제공됩니다.
v6.3부터 Gantt는 인라인 에디터에서 링크 유형 및 지연/선행 값을 직접 지정할 수 있습니다.
이를 위해 Link Formatter 모듈을 사용하고, LinksFormatter 인스턴스를 predecessor 에디터에 전달합니다:
var formatter = gantt.ext.formatters.durationFormatter({
enter: "day",
store: "day",
format: "auto"
});
var linksFormatter = gantt.ext.formatters.linkFormatter({durationFormatter: formatter});
var editors = {
text: {type: "text", map_to: "text"},
start_date: {type: "date", map_to: "start_date",
min: new Date(2018, 0, 1), max: new Date(2019, 0, 1)},
end_date: {type: "date", map_to: "end_date",
min: new Date(2018, 0, 1), max: new Date(2019, 0, 1)},
duration: {type: "duration", map_to: "duration",
min:0, max: 100, formatter: formatter},
priority: {type: "select", map_to: "priority",
options:gantt.serverList("priority")},
predecessors: {type: "predecessor", map_to: "auto", formatter: linksFormatter} };
gantt.config.columns = [
{name: "wbs", label: "#", width: 60, align: "center", template: gantt.getWBSCode},
{name: "text", label: "Name", tree: true, width: 200, editor: editors.text,
resize: true},
{name: "start_date", label: "Start", width:80, align: "center",
editor: editors.start_date, resize: true},
{name: "predecessors", label: "Predecessors",width:80, align: "left",
editor: editors.predecessors, resize: true, template: function(task){
var links = task.$target;
var labels = [];
for(var i = 0; i < links.length; i++){
var link = gantt.getLink(links[i]);
labels.push(linksFormatter.format(link)); }
return labels.join(", ")
}},
{name:"add"}
];
Related sample: Inline editing - keyboard navigation mode
아래는 사용자 정의 에디터에 대한 코드 예시입니다:
새로운 에디터 객체를 정의하여 사용자 정의 인라인 에디터를 만들 수 있습니다:
gantt.config.editor_types.custom_editor = {
show: function (id, column, config, placeholder) {
// 입력 표시 시 호출, placeholder에 HTML 마크업 삽입 및 에디터 초기화
var html = "<div><input type='text' name='" + column.name + "'></div>";
placeholder.innerHTML = html;
},
hide: function () {
// 입력 숨김 시 호출, 복잡한 에디터 정리나 이벤트 리스너 해제
},
set_value: function (value, id, column, node) {
// 입력값 설정
},
get_value: function (id, column, node) {
// 입력값 반환
},
is_changed: function (value, id, column, node) {
// 저장/닫기 전 호출. 값이 변경되었으면 true 반환
// true면 변경 저장, false면 저장 건너뜀
},
is_valid: function (value, id, column, node) {
// 입력값 검증, false 반환 시 변경 무시
return true/false;
},
save: function (id, column, node) {
// map_to:auto인 입력용. 복잡한 저장 로직 작성
},
focus: function (node) {
}
}
각 메서드의 역할은 다음과 같습니다:
map_to:auto
와 함께 복잡한 저장에 사용. 파라미터:
재사용 가능한 에디터를 위한 주요 포인트:
get_value
는 현재 에디터의 값을 반환만 하고 작업 객체를 직접 수정하지 않아야 합니다. 값이 유효하면 Gantt가 자동으로 작업을 업데이트합니다.map_to
옵션을 사용하여 어떤 작업 속성을 업데이트할지 지정하면, 에디터 내부에서 하드코딩하지 않아 재사용성이 높아집니다.hide
메서드는 복잡한 위젯이나 이벤트 해제가 필요하지 않다면 비워둘 수 있습니다.is_changed
및 is_valid
메서드를 구현하세요:
is_changed
는 값이 실제로 변경된 경우에만 true를 반환해 불필요한 업데이트를 방지합니다.is_valid
는 잘못된 입력값을 막아줍니다.save
에 로직을 작성하고, map_to
를 "auto"로 설정합니다. 이 경우 gantt는 작업을 직접 수정하지 않고 save
를 호출해 변경을 적용합니다.아래는 간단한 숫자 입력 에디터 예시입니다. hide
는 비워두고, save
는 생략했습니다.
var getInput = function(node){
return node.querySelector("input");
};
gantt.config.editor_types.simpleNumber = {
show: function (id, column, config, placeholder) {
var min = config.min || 0,
max = config.max || 100;
var html = "<div><input type='number' min='" + min +
"' max='" + max + "' name='" + column.name + "'></div>";
placeholder.innerHTML = html;
},
hide: function () {
// 에디터 제거 후 별도 정리가 필요 없으므로 비워둠
},
set_value: function (value, id, column, node) {
getInput(node).value = value;
},
get_value: function (id, column, node) {
return getInput(node).value || 0;
},
is_changed: function (value, id, column, node) {
var currentValue = this.get_value(id, column, node);
return Number(value) !== Number(currentValue);
},
is_valid: function (value, id, column, node) {
return !isNaN(parseInt(value, 10));
},
focus: function (node) {
var input = getInput(node);
if (!input) {
return;
}
if (input.focus) {
input.focus();
}
if (input.select) {
input.select();
}
}
};
아래와 같이 내장 에디터처럼 사용할 수 있습니다:
var numberEditor = {type: "simpleNumber", map_to: "quantity", min:0, max: 50};
gantt.config.columns = [
...
{name: "quantity", label: "Quantity", width: 80, editor: numberEditor,
resize: true},
...
];
Gantt가 에디터 DOM 요소를 자동으로 제거하므로, hide
에서 추가 정리가 필요하지 않습니다.
인라인 에디터에서 더 복잡한 위젯을 사용할 경우, 정리를 위한 hide
메서드 구현이 필요할 수 있습니다.
예를 들어, jQuery UI의 DatePicker 위젯을 사용하는 DatePicker 입력 구현은 에디터가 DOM에서 제거될 때 위젯을 destroy해야 합니다.
사전 준비:
<link rel="stylesheet" href="//code.jquery.com/ui/1.12.1/themes/base/jquery-ui.css">
<script src="https://code.jquery.com/jquery-1.12.4.js"></script>
<script src="https://code.jquery.com/ui/1.12.1/jquery-ui.js"></script>
에디터 예시:
gantt.config.editor_types.custom_datepicker_editor = {
show: function (id, column, config, placeholder) {
placeholder.innerHTML = "<div><input type='text' id='datepicker' name='" +
column.name + "'></div>";
$("#datepicker").datepicker({
dateFormat: "yy-mm-dd",
onSelect: function(dateStr){
gantt.ext.inlineEditors.save()
}
});
},
hide: function (node) {
$("#datepicker").datepicker( "destroy" );
},
set_value: function (value, id, column, node) {
$("#datepicker").datepicker("setDate", value);
},
get_value: function (id, column, node) {
return $("#datepicker").datepicker( "getDate" );
},
is_changed: function (value, id, column, node) {
return (+$("#datepicker").datepicker( "getDate" ) !== +value);
},
is_valid: function (value, id, column, node) {
return !(isNaN(+$("#datepicker").datepicker( "getDate" )))
},
save: function (id, column, node) {
},
focus: function (node) {
}
};
let dateEditor = {
type: "custom_datepicker_editor",
map_to: "start_date"
};
gantt.config.columns = [
{name: "text", tree: true, width: '*', resize: true},
{name: "start_date", align: "center", resize: true, editor: dateEditor},
{name: "duration", align: "center"},
{name: "add", width: 44}
];
Related sample: 에디터에서 jQuery Datepicker 사용
save
함수는 에디터가 여러 작업(Task)의 속성을 동시에 업데이트해야 하거나, 작업 이외의 객체를 수정해야 할 때 유용하게 사용됩니다.
이러한 경우에도 내장 유효성 검사를 위해 get_value
를 구현할 수 있지만, gantt는 에디터의 값을 작업에 직접 적용하지 않습니다. 대신 save
함수를 호출하게 됩니다.
save
가 호출되면, 입력된 값을 해석하여 필요한 변경사항을 직접 커스텀 코드로 gantt에 적용해야 합니다. save
메서드 실행이 끝나면, Gantt는 onSave 이벤트를 발생시키지만, 갱신된 행에 대해 gantt.updateTask 는 호출하지 않습니다.
참고! save
메서드는 에디터 구성에서 map_to:"auto"
를 설정한 경우에만 호출됩니다:
var editors = {
...
predecessors: {type: "predecessor", map_to: "auto"}
};
이 기능의 좋은 예시는 내장된 predecessor 에디터입니다. 관련 샘플에서 간략화된 구현을 확인할 수 있습니다:
Related sample: Built-in predecessor editor
이 모드는 마우스를 이용해 셀에 포커스를 이동하고, 단축키로 셀 간 이동을 지원합니다:
Related sample: Inline editing
이 모드에서는 키보드로 그리드 셀을 이동하거나, 미리 지정된 키 조합으로 편집할 수 있습니다:
키보드 내비게이션을 통한 편집을 활성화하려면 다음을 수행해야 합니다:
gantt.plugins({
keyboard_navigation: true
});
gantt.config.keyboard_navigation = true;
gantt.config.keyboard_navigation_cells = true;
또한, placeholder row (작업 목록 끝에 표시되는 빈 행)를 활성화해, 사용자가 이 행을 편집하여 새로운 작업을 추가할 수 있습니다.
gantt.config.placeholder_task = true;
또는, 새 작업 추가 후 즉시 placeholder task로 포커스를 이동하려면 다음과 같이 설정합니다:
gantt.config.placeholder_task = {
focusOnCreate: true
};
필요하다면 automatic detection of task types 도 활성화할 수 있습니다:
gantt.config.auto_types = true;
Related sample: Inline editing - keyboard navigation mode
직접 키보드 매핑을 정의하여, 에디터가 어떻게 열리고, 에디터 관련 이벤트(열기, 닫기, 편집 시작/종료 등)를 어떻게 처리할지 지정할 수 있습니다. 이를 위해 별도의 객체를 생성하고, 해당 매핑을 적용하는 특수 메서드에 전달합니다:
var mapping = {
init: function(inlineEditors){
// inlineEditor 모듈 초기화
// 편집 시작/종료에 대한 글로벌 리스너 추가
},
onShow: function(inlineEditors, node){
// 에디터 표시됨
},
onHide: function(inlineEditors, node){
// 에디터 숨김
// 필요시 onShow에서의 변경사항 정리
}
};
gantt.ext.inlineEditors.setMapping(mapping);
Related sample: Inline editing - Custom keyboard mapping
키보드 내비게이션, 인라인 에디터, placeholder task를 함께 사용할 때 자주 발생하는 두 가지 시나리오가 있습니다.
시나리오 1. 새 placeholder task에 이름을 입력하고 Tab을 누르면, Gantt가 해당 작업의 다음 셀을 열어줄 것으로 기대됩니다. 그러나 실제로는 포커스가 아래의 다음 placeholder task로 이동하며, 인라인 에디터는 열리지 않습니다.
시나리오 2. 새 placeholder task에 이름을 입력한 후 다음 셀을 클릭하면, Gantt는 클릭한 셀이 아니라 다음 placeholder task로 포커스를 이동시킵니다.
커스텀 매핑을 사용하면 마우스 및 키보드 동작에 대해 인라인 에디터가 어떻게 반응할지 지정하여 이러한 문제를 해결할 수 있습니다. 예시는 다음과 같습니다:
Related sample: Gantt. Custom mapping for placeholder task
그리드에서 셀을 편집하다 보면 실수가 발생할 수 있습니다.
잘못된 값이 저장되는 것을 방지하려면, 에디터를 닫기 전에 입력값을 검증해야 합니다. 방법은 두 가지가 있습니다:
검증이 에디터 동작에 미치는 영향은 다음과 같습니다:
그리드 셀에서 마우스로 에디터를 열었을 때:
클라이언트/서버 측 검증에 대한 자세한 내용은 Validation 문서를 참고하세요.
검증이 활성화되면, Gantt는 잘못된 입력을 리셋하고 에디터를 닫습니다. 사용자가 값을 수정하려면 셀을 다시 열어야 합니다.
이런 불편을 줄이기 위해, 사용자에게 값을 수정할 수 있도록 알림(alert)을 표시하는 방법이 있습니다. 예를 들어, 커스텀 키보드 매핑을 활용할 수 있습니다:
function editAnotherCell(inlineEditors){
var value = inlineEditors.getValue();
if(confirm(`does '${value}' look ok to you?`)){
inlineEditors.save();
}
}
var mapping = {
init: function(inlineEditors){
gantt.attachEvent("onTaskClick", function (id, e) {
var cell = inlineEditors.locateCell(e.target);
if (cell && inlineEditors.getEditorConfig(cell.columnName)) {
if (inlineEditors.isVisible()) editAnotherCell(inlineEditors)
else inlineEditors.startEdit(cell.id, cell.columnName);
return false;
}
return true;
});
gantt.attachEvent("onEmptyClick", function () {
inlineEditors.hide();
return true;
});
},
onShow: function(inlineEditors, node){
node.onkeydown = function (e) {
e = e || window.event;
if(e.defaultPrevented){
return;
}
var keyboard = gantt.constants.KEY_CODES;
var shouldPrevent = true;
switch (e.keyCode) {
case gantt.keys.edit_save:
var value = inlineEditors.getValue();
if(confirm(`does '${value}' look ok to you?`)){
inlineEditors.save();
}
break;
case gantt.keys.edit_cancel:
inlineEditors.hide();
break;
case keyboard.TAB:
if(e.shiftKey){
if (inlineEditors.isVisible()) editAnotherCell(inlineEditors)
else inlineEditors.editPrevCell(true);
}else{
if (inlineEditors.isVisible()) editAnotherCell(inlineEditors)
else inlineEditors.editNextCell(true);
}
break;
default:
shouldPrevent = false;
break;
}
if(shouldPrevent){
e.preventDefault();
}
};
},
onHide: function(inlineEditors, node){}
};
gantt.ext.inlineEditors.setMapping(mapping);
gantt.init("gantt_here");
Related sample: Custom keyboard mapping
싱글 선택 모드에서는 작업을 클릭하면 인라인 에디터가 즉시 열립니다.
다중 선택 모드에서는 선택되지 않은 작업을 클릭하면 해당 작업이 선택되고, 인라인 에디터는 두 번째 클릭 시에만 열립니다. 만약 첫 번째 클릭에 바로 에디터가 열리게 하려면, inline_editors_multiselect_open 설정을 활성화하세요:
gantt.plugins({
multiselect: true
});
...
gantt.config.inline_editors_multiselect_open = true;
Back to top
