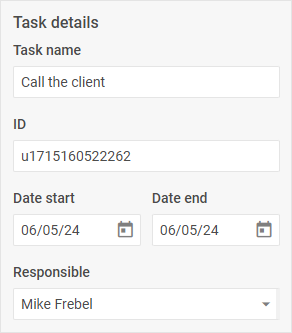

Fieldset

用于借助 Editbar 配置项 controls 或 properties 创建复杂控件的基本控件。

用法

{
    type: "fieldset",

    compact?: boolean,
    hidden?: boolean, // 默认为 false
    disabled?: boolean, // 默认为 false

    css?: string,
    width?: string | number | "content", // 默认为 "content"
    height?: string | number | "content", // 默认为 "content"
    padding?: string | number,
    align?: "start" | "center" | "end" | "between" | "around" | "evenly", // 默认为 "start"

    label?: string,
    labelAlignment?: "left" | "right" | "center", // 默认为 "left"

    rows?: object[],
    cols?: object[],

    $layout?: function
}

rows 和 cols 属性可以包含指定控件对象的数组，或如下所示的嵌套结构：

{
    css?: string,
    width?: string | number | "content", // 默认为 "content"
    height?: string | number | "content", // 默认为 "content"
    padding?: string | number,
    align?: "start" | "center" | "end" | "between" | "around" | "evenly", // 默认为 "start"
    rows?: object[],
    cols?: object[]
}

描述

基本属性

• type -（必需）控件的类型。将其设置为 "fieldset"
• compact -（可选）指定紧凑模式，移除缩进和边框。默认为 false
• disabled -（可选）定义控件是启用（false）还是禁用（true）。默认为 false
• hidden -（可选）定义控件是否隐藏。默认为 false
• css -（可选）应用于控件组的 CSS 类名称
• width -（可选）设置控件组的宽度。默认为 "content"
• height -（可选）设置控件组的高度。默认为 "content"
• padding -（可选）设置控件组内部内容的内边距
• align -（可选）设置控件组内控件的对齐方式。默认为 "start"
• label -（可选）指定控件的标签
• labelAlignment -（可选）定义标签的位置："left" | "right" | "center"。默认为 "left"
• rows -（可选）将控件组内的控件垂直排列
• cols -（可选）将控件组内的控件水平排列

服务属性和方法

警告

请注意，我们强烈建议不要重新定义默认类型控件的服务属性和方法，因为这可能会导致其功能出现问题。

• $layout -（可选）- 一个回调函数，用于设置控件的结构。返回 Fieldset Form 控件的配置。调用时带有以下参数：
  • object - 不含服务属性的控件配置

示例

通过 properties 属性创建 Fieldset

const editor = new dhx.DiagramEditor("editor_container", {
    type: "org",
    view: {
        editbar: {
            properties: {
                $shape: [
                    {
                        type: "fieldset",
                        label: "Task details",
                        rows: [
                            { type: "input", key: "name", label: "Task name" },
                            { type: "input", key: "id", label: "ID", readOnly: true },
                            {
                                align: "between",
                                cols: [
                                    { type: "datepicker", key: "date_start", label: "Date start", width: "48%" },
                                    { type: "datepicker", key: "date_end", label: "Date end", width: "48%" },
                                ]
                            },
                            {
                                type: "combo",
                                key: "responsible",
                                label: "Responsible",
                                placeholder: "Select responsible",
                                options: ["Henry Bennet", "Mike Frebel", "Greg Mash"]
                            }
                        ]
                    }
                ]
            }
        }
    }
});

通过 controls 属性创建复杂控件

const editor = new dhx.DiagramEditor("editor_container", {
    type: "default",
    view: {
        editbar: {
            properties: {
                $shape: [
                    { type: "details" }
                ]
            },
            controls: {
                details: {
                    type: "fieldset",
                    label: "Task details",
                    rows: [
                        { type: "input", key: "name", label: "Task name" },
                        { type: "input", key: "id", label: "ID", readOnly: true },
                        {
                            align: "between",
                            cols: [
                                { type: "datepicker", key: "date_start", label: "Date start", width: "48%" },
                                { type: "datepicker", key: "date_end", label: "Date end", width: "48%" }
                            ]
                        },
                        {
                            type: "combo",
                            key: "responsible",
                            label: "Responsible",
                            placeholder: "Select responsible",
                            options: ["Henry Bennet", "Mike Frebel", "Greg Mash"]
                        }
                    ]
                }
            }
        }
    }
});
