The complex control for configuring the shape offset from the predefined algorithm on the X and Y axis

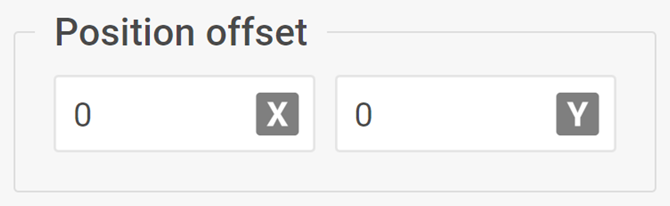

Position control

info

The Position control is available only for the shape element in the org or mindmap modes of the Diagram editor.

Usage​

{
    type: "position",

    hidden?: boolean, // false by default
    disabled?: boolean, // false by default

    css?: string,
    width?: string | number | "content", // "content" by default
    height?: string | number | "content", // "content" by default
    padding?: string | number, // "0 16px" by default

    label?: string,
    labelAlignment?: "left" | "right" | "center", // "left" by default
    align?: "start" | "center" | "end" | "between" | "around" | "evenly", // "start" by default
    compact?: boolean, // false by default

    // Service properties
    $properties?: object
}

Description​

Basic properties​

  • type - (required) the type of a control. Set it to "position"
  • hidden - (optional) defines whether the control is hidden. false by default
  • disabled - (optional) defines whether the control is enabled (false) or disabled (true). false by default
  • css - (optional) adds style classes to the control
  • width - (optional) the width of the control. "content" by default
  • height - (optional) the height of the control. "content" by default
  • padding - (optional) sets the padding for the content inside the control group. "0 16px" by default
  • label - (optional) specifies a label for the control
  • labelAlignment - (optional) defines the position of the label. "left" by default
  • align - (optional) sets the alignment of controls inside the control group. "start" by default
  • compact - (optional) specifies the compact mode, removes indents and frame. false by default

Service properties​

  • $properties - (optional) allows you to override values of basic controls) within a complex control. You can configure the following elements of the Position control based on the basic controls:
    • dx - (input) sets the shape offset from the predefined algorithm on the x-axis
    • dy - (input) sets the shape offset from the predefined algorithm on the y-axis

Example​

const editor= new dhx.DiagramEditor("editor_container", {
    type: "mindmap",
    view: {
        editbar: {
            properties: {
                $shape: [
                    {
                        type: "position",
                        $properties: {
                            dx: { disabled: true }
                        }
                    }
                ]
            }
        }
    }
});
