The complex control for displaying and managing connectors

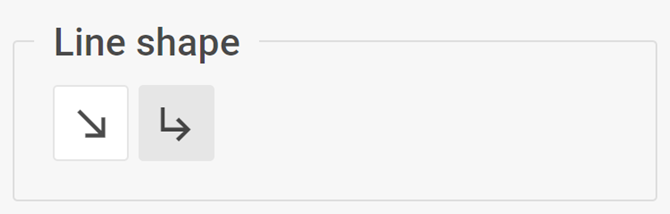

Line shape control

info

The Line shape control is available only for the line element in the default mode of the Diagram editor.

Usage​

{
    type: "lineShape",

    hidden?: boolean, // false by default
    disabled?: boolean, // false by default

    css?: string,
    width?: string | number | "content", // "content" by default
    height?: string | number | "content", // "content" by default
    padding?: string | number, // "0 16px" by default

    label?: string,
    labelAlignment?: "left" | "right" | "center", // "left" by default
    align?: "start" | "center" | "end" | "between" | "around" | "evenly", // "between" by default
    compact?: boolean, // false by default

    // Service properties
    $properties?: object
}

Description​

Basic properties​

  • type - (required) the type of a control. Set it to "lineShape"
  • hidden - (optional) defines whether the control is hidden. false by default
  • disabled - (optional) defines whether the control is enabled (false) or disabled (true). false by default
  • css - (optional) adds style classes to the control
  • width - (optional) the width of the control. "content" by default
  • height - (optional) the height of the control. "content" by default
  • padding - (optional) sets the padding for the content inside the control group. "0 16px" by default
  • label - (optional) specifies a label for the control
  • labelAlignment - (optional) defines the position of the label. "left" by default
  • align - (optional) sets the alignment of controls inside the control group. "between" by default
  • compact - (optional) specifies the compact mode, removes indents and frame. false by default

Service properties​

  • $properties - (optional) allows you to override values of basic controls within a complex control. You can configure the following element of the Line shape control based on the basic controls:

Example​

const editor= new dhx.DiagramEditor("editor_container", {
    type: "default",
    view: {
        editbar: {
            properties: {
                $line: [
                    {
                        type: "lineShape",
                        label: "Line connection type"
                    }
                ]
            }
        }
    }
});
