未计划任务

可以在甘特图中添加没有具体日期的任务。

实现方法是在任务描述中将 unscheduled 属性设置为 true

{"id":1, "text":"Project #1", "type":"project", "progress": 0.6, "open": true},
{"id":2, "text":"Task #1", "unscheduled":false, "start_date":"02-04-2019", "parent":"1"},
{"id":3, "text":"Task #2", "unscheduled":true,"start_date":"","duration":"","parent":"1"}

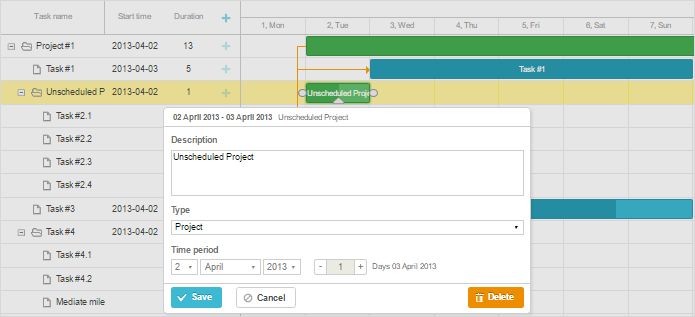

这样,id 为 "3" 的任务将在甘特图中显示为没有开始日期,并以空行的形式展示。

如需启用未计划任务的显示,请将配置参数 show_unscheduled 设置为 false

gantt.config.show_unscheduled = false;

请注意,甘特图会为未计划任务分配默认日期。这意味着这些任务的 start_date/end_date 属性不会保持为空:

var task = gantt.getTask(3);
console.log(task.unscheduled);
// true

console.log(task.start_date);
// Tue Jun 25 2019 18:42:50

Related sample:  Show Unscheduled Tasks
