timeline_placeholder

当timeline为空时显示背景grid

boolean timeline_placeholder;

Example

gantt.config.timeline_placeholder = false;
...
gantt.init("gantt_here");

Related samples

Details

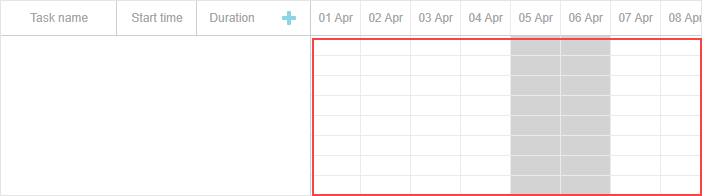

当Gantt中没有加载任何任务时,timeline中会显示背景grid:

background grid

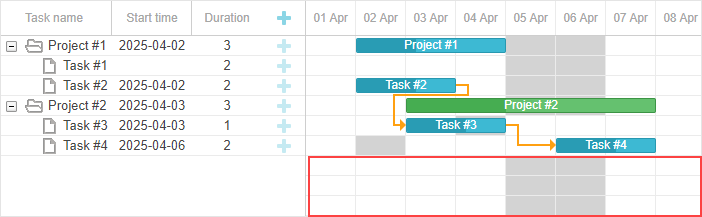

如果包含任务的行没有覆盖整个timeline,也会显示背景grid:

background grid

为了突出显示背景grid中的列和单元格,可以使用 timeline_cell_class 模板:

gantt.templates.timeline_cell_class = function (task, date) {
    if (!gantt.isWorkTime({ date: date, task: task })) {
        return "weekend";
    }
};

对于背景行,会传入一个临时的task对象给模板。可以通过其id来识别该对象:

if(task.id === "timeline_placeholder_task"){
    ...
}
See also
Change log

added in v8.0
