xy

Description

Specifies sizes of the scheduler's elements

xy: SchedulerSizes

Example

scheduler.xy.scale_height = 25;//sets the height of the X-Axis
...
scheduler.init('scheduler_here',new Date(),"month");

Details

The xy object has the following properties:

Property	Description	Default value	Applicable views
bar_height	the height of the task bars in the Month view	20	month
editor_width	the width of the event's text input	140	day, week, units
lightbox_additional_height	increases the length of the lightbox	50	all views
map_date_width	the width of the date column in the Map view	188	map
map_description_width	the width of the description column in the Map view	400	map
margin_left	the left margin of the main scheduler area	0	all views
margin_top	the bottom margin of the main scheduler area	0	all views
menu_width	the width of the selection menu	25	day, week, units
min_event_height	the minimal height of the event's box	40	day, week, units
month_scale_height	the top offset of an event in a cell in the month view	20	month
scale_height	the height of the X-Axis	20	all views
scale_width	the width of the Y-Axis	50	day, week, timeline, units
scroll_width	the width of the scrollbar area	18	all views

note

Note, all the xy' properties have the data type 'number'.

Illustration images

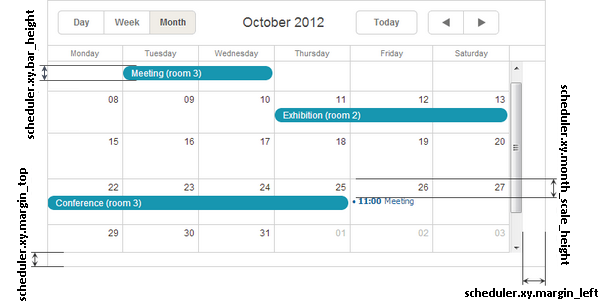

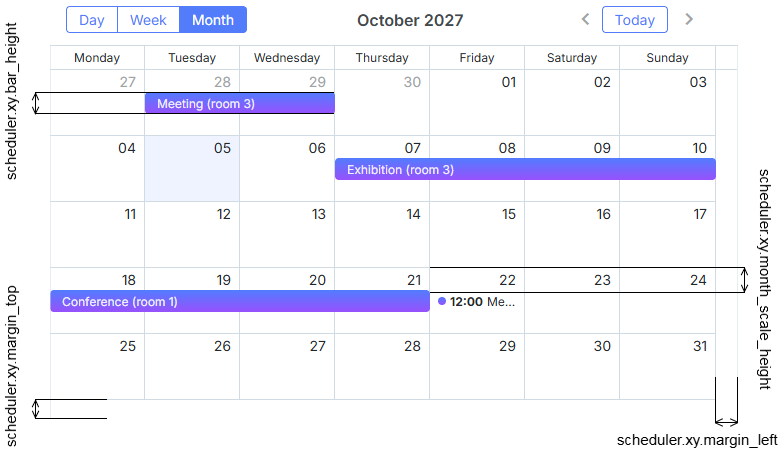

Month view

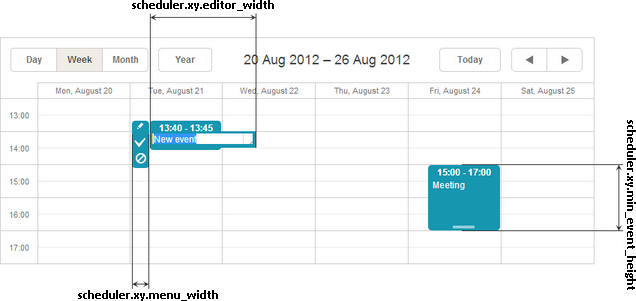

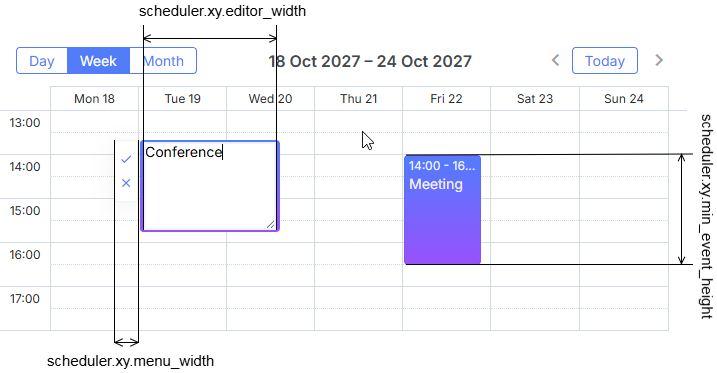

Week view

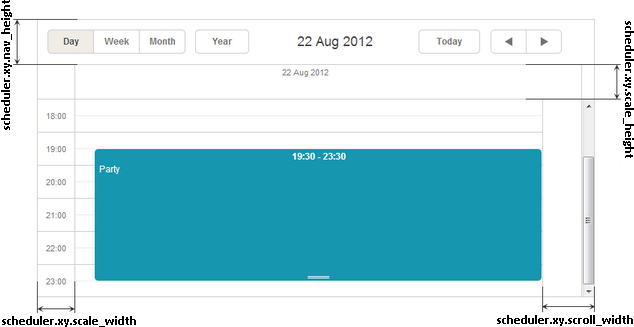

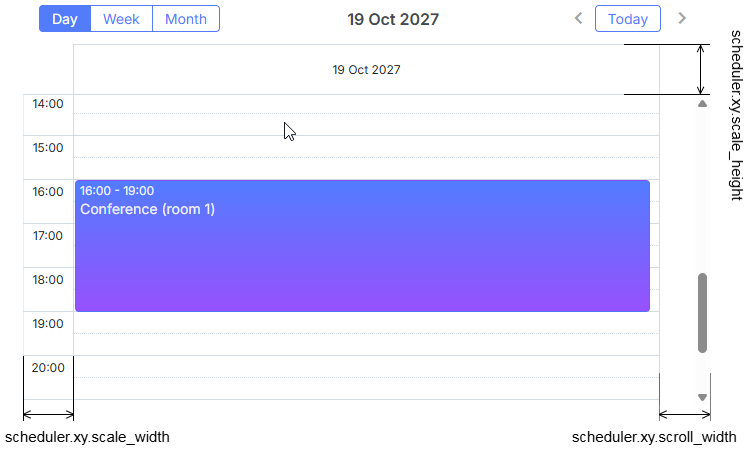

Day view

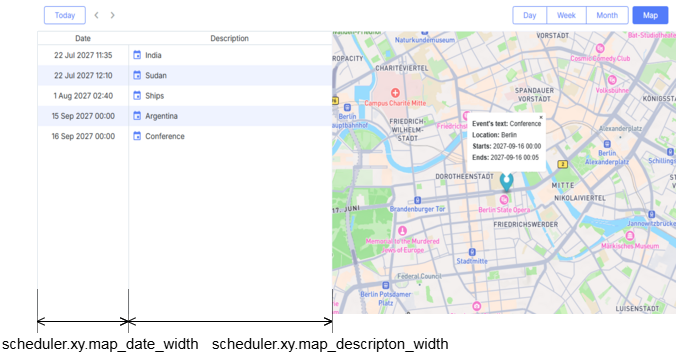

Map view

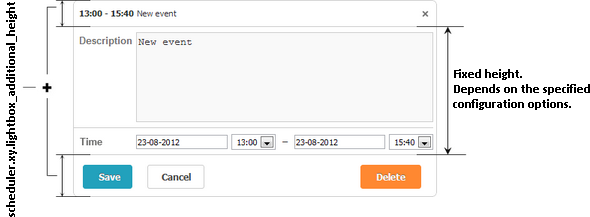

Lightbox

Change log

• nav_height property was removed in v7.0, the toolbar can be sized by css.
