Checkbox

A two-state check box.

scheduler.locale.labels.section_checkme = "I'm going to participate";

scheduler.config.lightbox.sections = [
    { name:"text", height:50, map_to:"text", type:"textarea", focus:true },
    { name:"checkme", map_to:"participation", type:"checkbox",
    checked_value: "registrable", unchecked_value: "unchecked", height:40 },
    { name:"time", height:72, type:"time", map_to:"auto"}
];

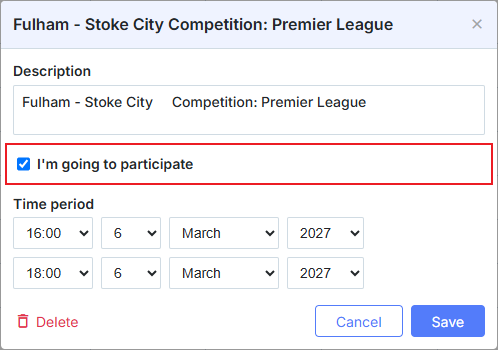

Checkbox in the lightbox

Initialization

To add the Checkbox control to the lightbox, follow these steps:

1. Activate the editors extension on the page:

scheduler.plugins({
    editors: true
});

2. Add the section to the lightbox configuration:

scheduler.config.lightbox.sections = [
    { name:"description", ... },
    { name:"checkme", map_to:"single_checkbox", type:"checkbox",
    checked_value: "registrable", height:40},
    { name:"time", ...}
];

3. Set the label for the section:

scheduler.locale.labels.section_checkme = "I'm going to participate";

Checkbox in the lightbox

Properties

The following properties are mostly important and commonly set for the 'checkbox' control (see the full list here):

name	(string) the section's name
height	(number) the section's height
map_to	(string) the name of a data property that will be mapped to the section
type	(textarea,time,select,template,multiselect,radio,checkbox,combo) the type of the section's control
checked_value	(boolean) the value of the checkbox in the checked state. Optional. By default, true
unchecked_value	(boolean) the value of the checkbox in the unchecked state. Optional. By default, false
