Year View

The Year view presents a single or more years of the calendar.

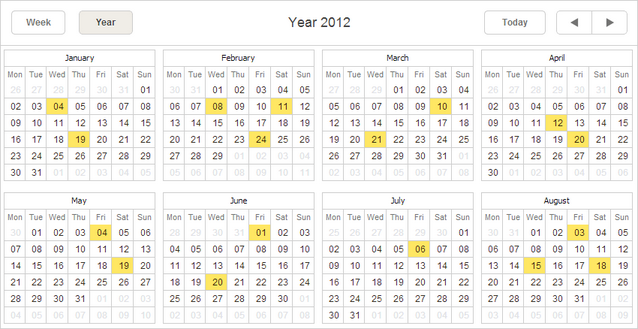

Year view

Initialization

To add the Year view to the scheduler, follow these steps:

1.Activate the Year extension on the page:

scheduler.plugins({
    year_view: true
});

2.Add the view's tab to the scheduler's markup:

<div id="scheduler_here" class="dhx_cal_container" ...>
    <div class="dhx_cal_navline">
       ...
       <div class="dhx_cal_tab" name="year_tab" style="right:280px;"></div>
    </div>
    ...
</div>

3.Set the label for the tab:

//'year_tab' is the name of our div
scheduler.locale.labels.year_tab ="Year";

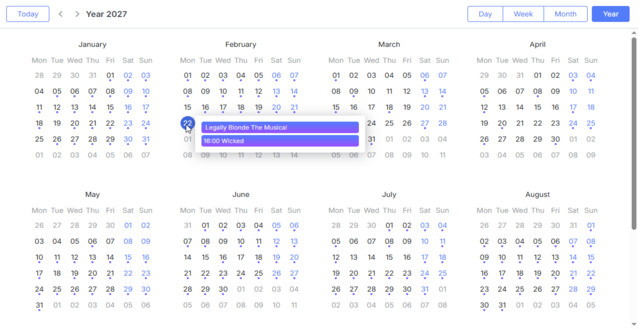

Year view

GUI details

• Dates which have some events assigned are highlighted.
• Hovering over a date will show the tooltip with a list of all assigned events. You can click on the 'details' icon inside the tooltip to open the lightbox (if only the readonly mode is not activated).

Setting the number of months in the view

To define the number of months in a row and a column, use the year_x and year_y properties:

//the Year view will display only 6 months
scheduler.config.year_x = 2; //2 months in a row
scheduler.config.year_y = 3; //3 months in a column
